Marathon Motors 114167.00 Leeson 3/4 hp 1725 RPM 56C Frame Brake Motor D402

Product Description

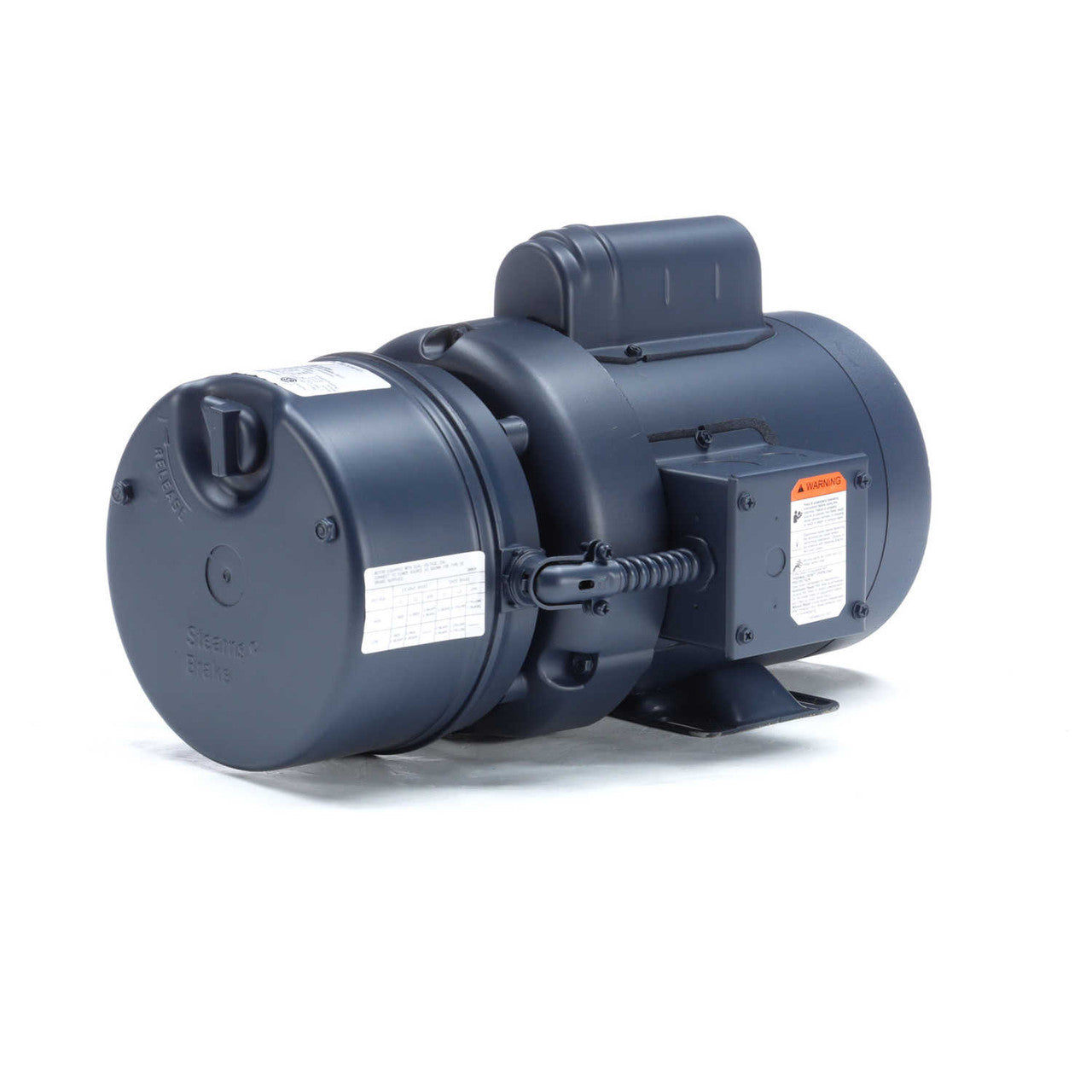

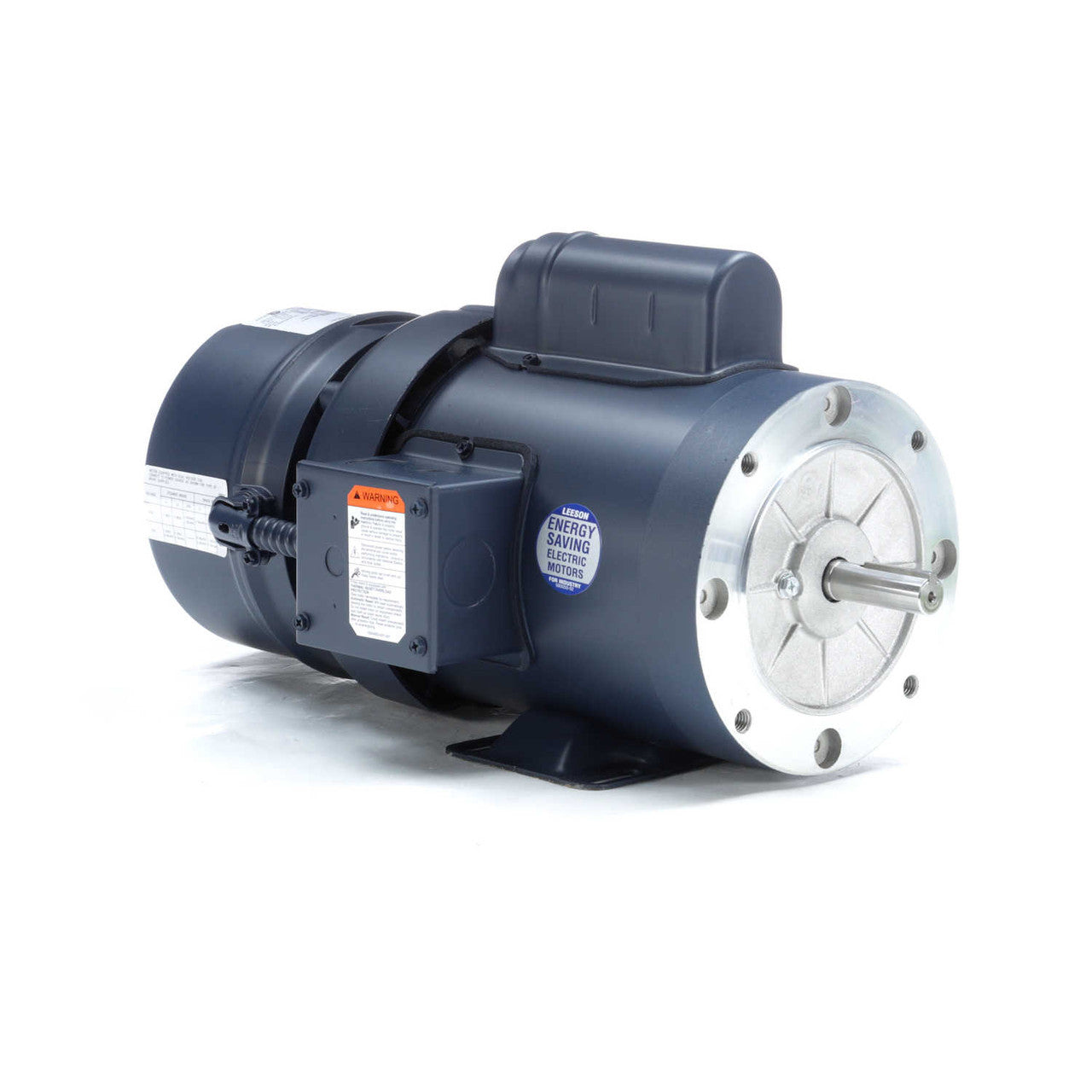

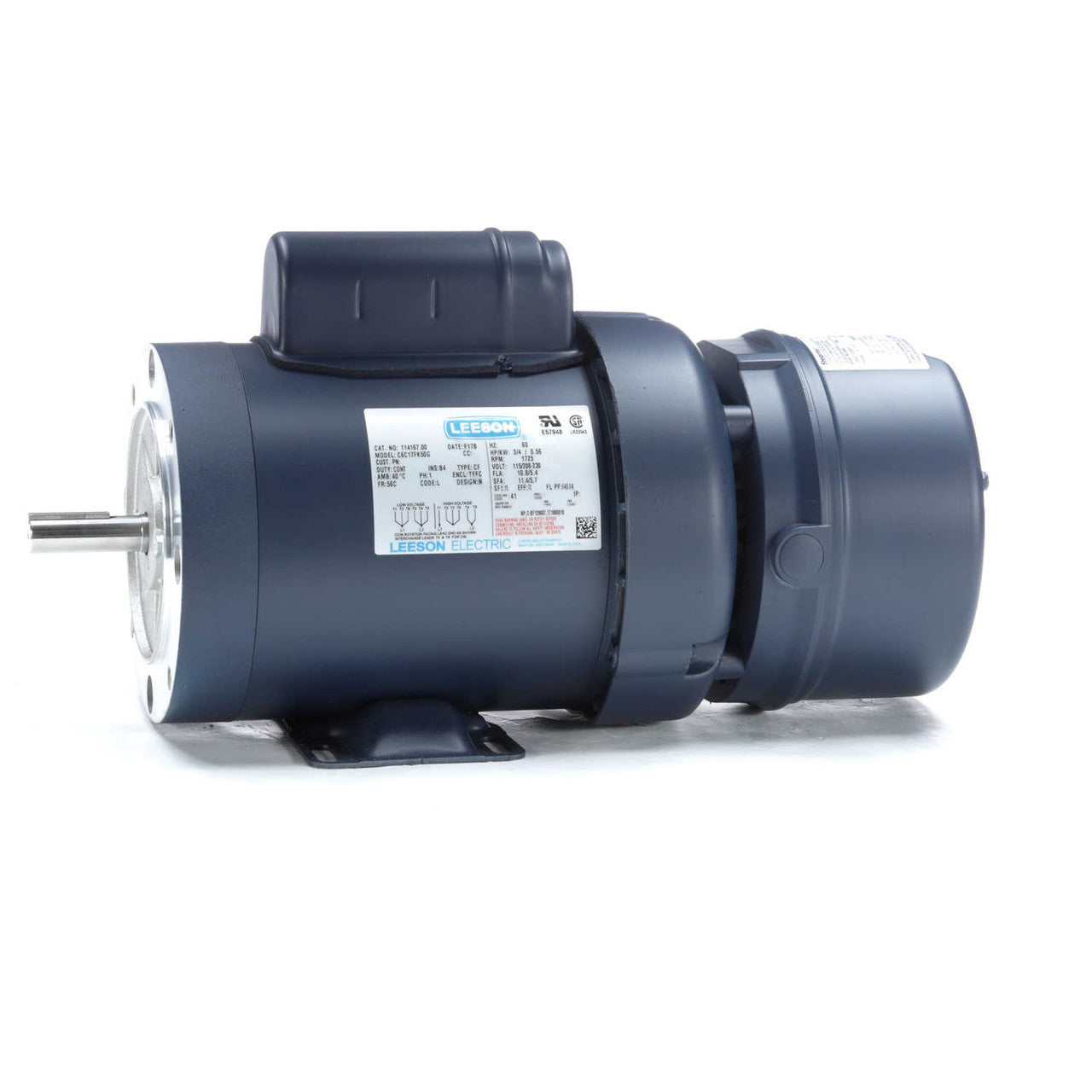

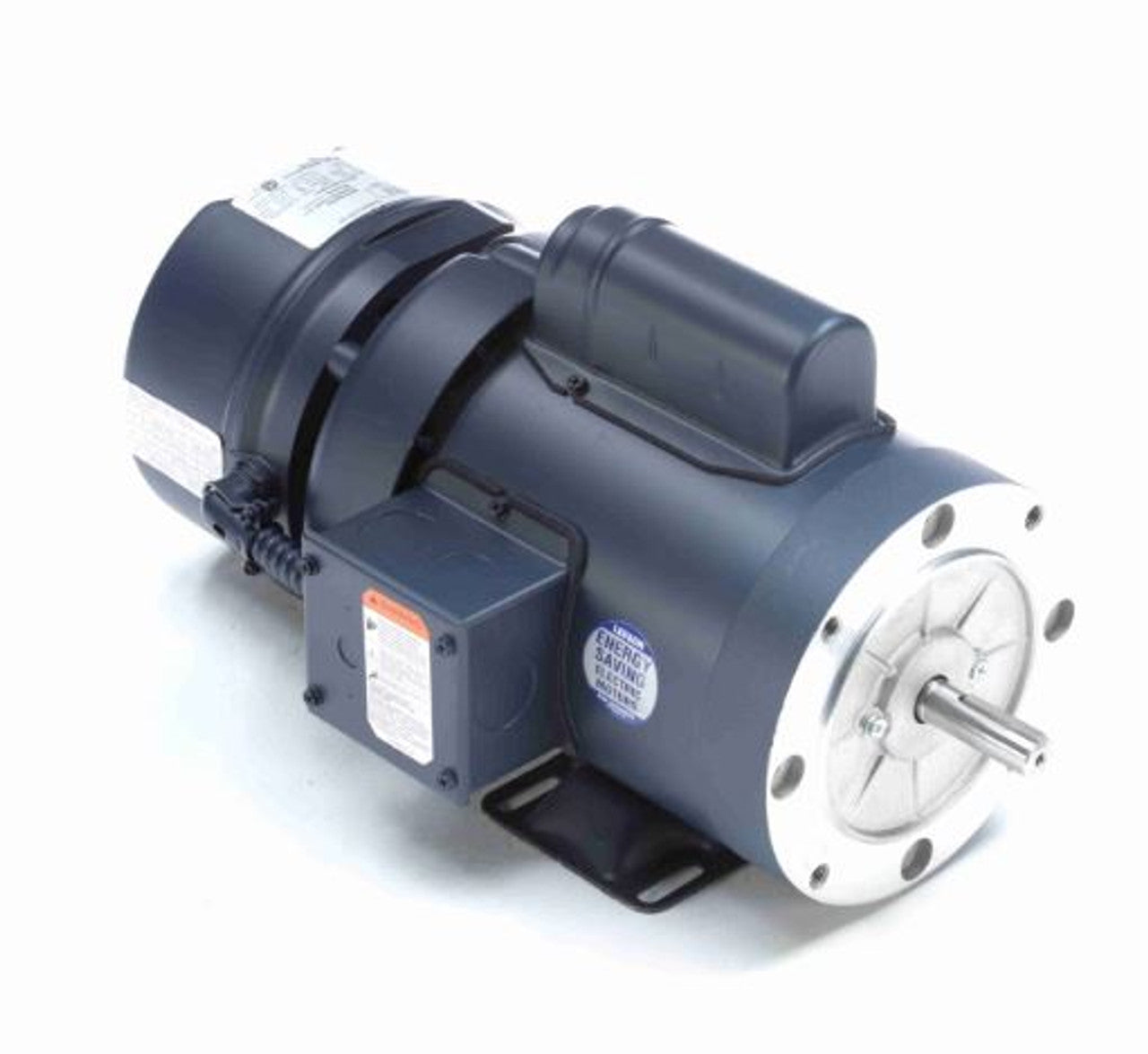

The MARATHON MOTORS 114167.00 is a Leeson 3/4 hp brake motor with a speed of 1725 RPM. This single-phase motor operates at 115/208-230V and 60Hz. It features a NEMA 56C frame, a 5/8″ diameter keyed shaft with a length of 1 7/8″, and a rigid base/C-Face mount. The brake is manufactured by Stearns.

• TEFC C-Face (Rigid Base) Brake Motor
• Fail-safe positive, stop and hold brake
• Power off manual release

Product Highlights

This Leeson brake motor features a power off manual release and a brake manufactured by Stearns. It is designed for positive stop and hold applications.

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: 114167.00

Technical Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Frame: 56C
• Voltage: 115/208-230V
• Phase: Single
• Frequency: 60hz
• Shaft Diameter: 5/8"
• Shaft Length: 1 7/8"
• Brake Rating: 6 Ft. Lbs.
• Service Factor: 1.15
• Insulation Class: B
• Mount: Rigid Base/C-Face
