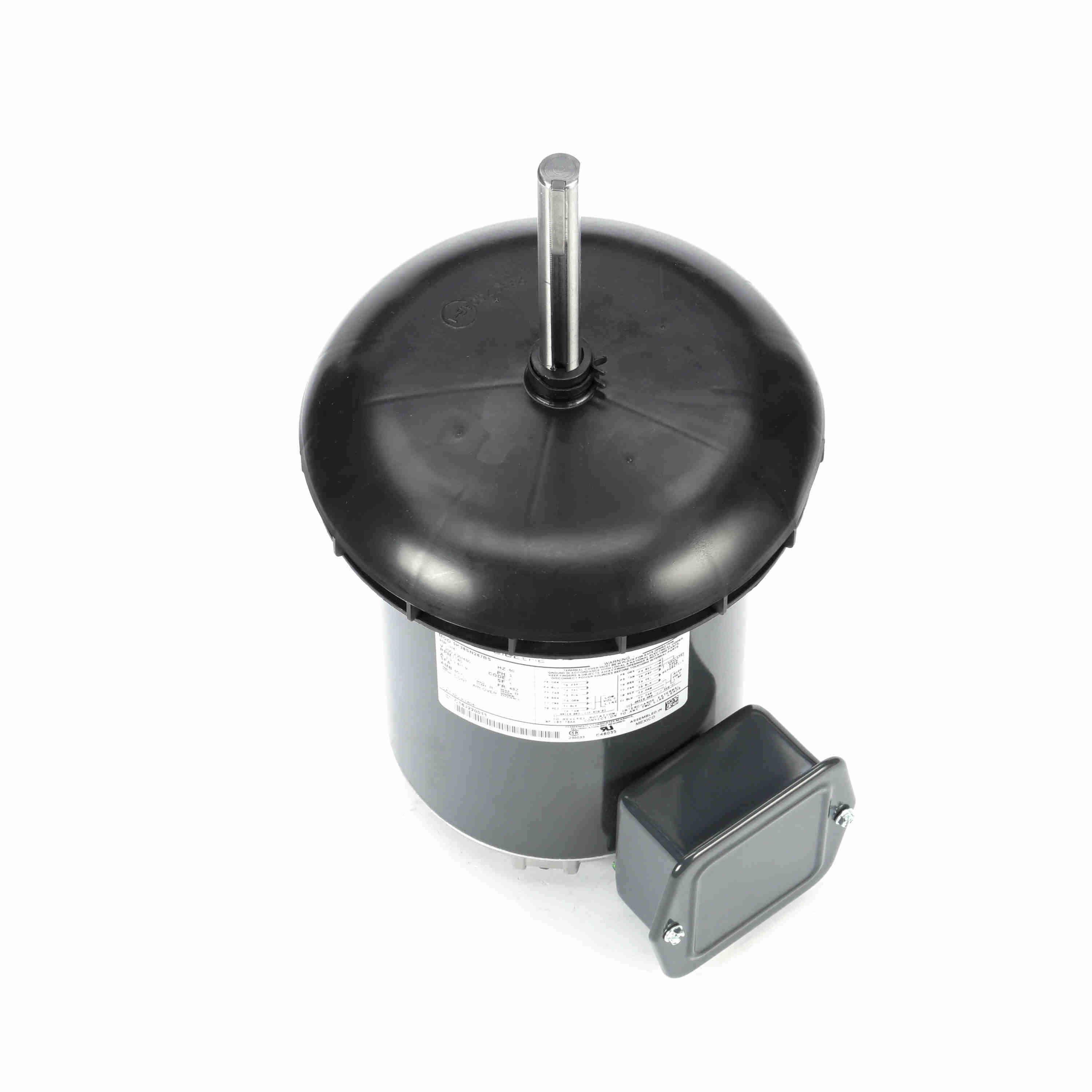

Marathon MK1404 Condenser Fan Motor Three Phase 3/4 HP

Product Description

The Marathon MK1404 is a three-phase condenser fan motor designed for HVAC applications. With a power rating of three-quarters of a horsepower and a speed of 1140 revolutions per minute, this motor provides reliable performance for cooling systems. The motor's frame size is 48Z with a diameter of five point six inches, and it features a rolled steel construction for durability. It operates on a voltage range of two hundred to two hundred thirty or four hundred sixty volts with automatic overload protection.

• Electrical Type: Three Phase
• Amperage: 3.3-3.8, 1.9
• Mounting Type: Round

Product Highlights

This motor is suitable for various cooling applications due to its robust build and efficient operation.

Product Information

Standard Information

• Brand: Marathon
• MPN: MK1404

Technical Specifications

• HP: 3/4
• RPM: 1140
• Frame Size: 48Z
• Diameter: 5.6 inches
• Enclosure: Open Air Over (OAO)
• Voltage: 200-230/460 volts
• Rotation: Reversible
• Overload Protection: Auto
