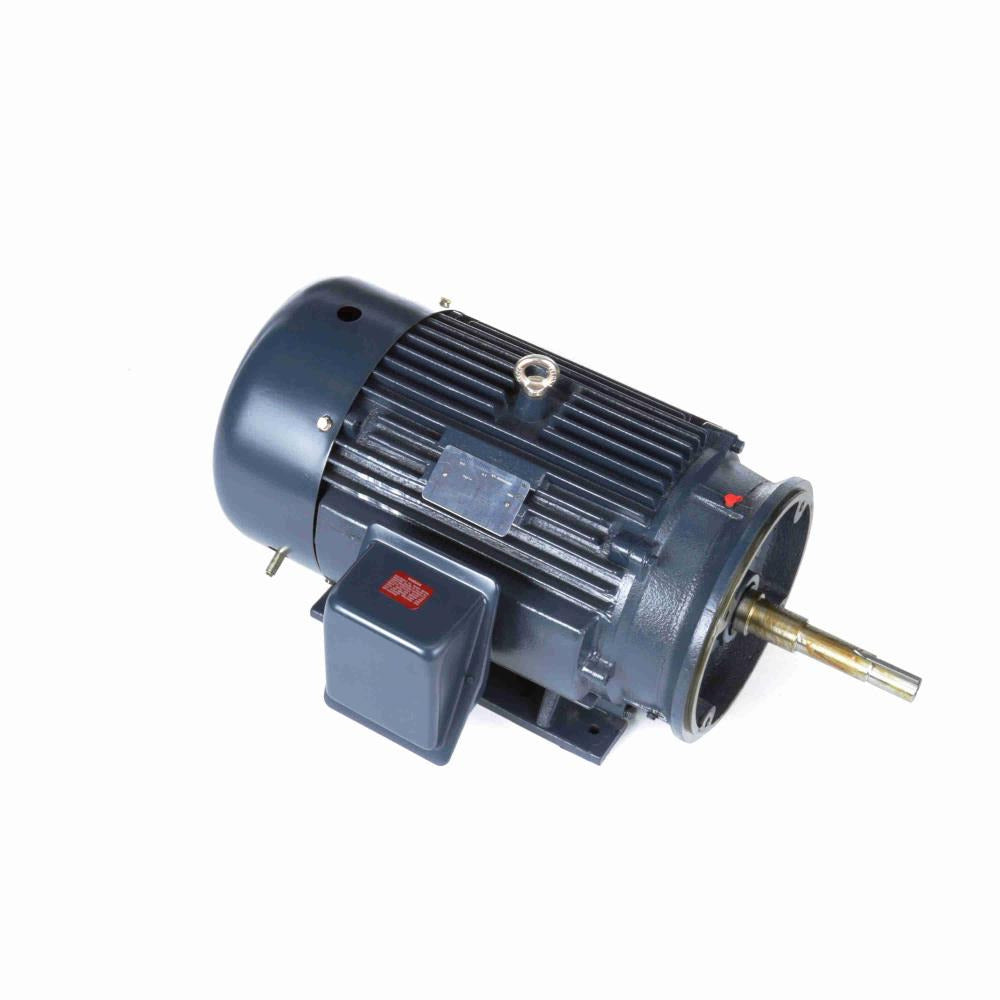

Marathon MGT3431A Close Coupled Pump Motor 30 HP 230/460V TEFC

Product Description

The Marathon Motors MGT3431A is a close coupled pump motor suitable for continuous duty applications. Built with a rigid base for stable mounting, this motor features a Totally Enclosed Fan Cooled (TEFC) design that protects against dust and moisture. It is ideal for use with close coupled pumps, ensuring reliable operation for various industrial and commercial applications.

• Designed for continuous duty service.
• Rigid base for stable mounting.
• Wiring diagram included on the motor plate.

Product Highlights

This motor is widely used in pumping systems requiring durable and efficient performance. It operates at a horsepower rating of thirty, making it effective for demanding tasks.

Product Information

Standard Information

• Brand: Marathon Motors
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

Technical Specifications

• MPN: MGT3431A
• Horsepower: 30 HP
• Voltage: 230/460V
• Amperage: 71.0/35.5 Amps
• RPM: 1770
• Frequency: 60Hz
• Frame: 286JP
• Material: Cast Iron
• Rotation: Reversible
• Service Factor: 1.15
• Insulation Class: Class F
• Duty Type: Continuous Duty
• Bearings Type: Ball Bearings
• Electrical Type: Three Phase
