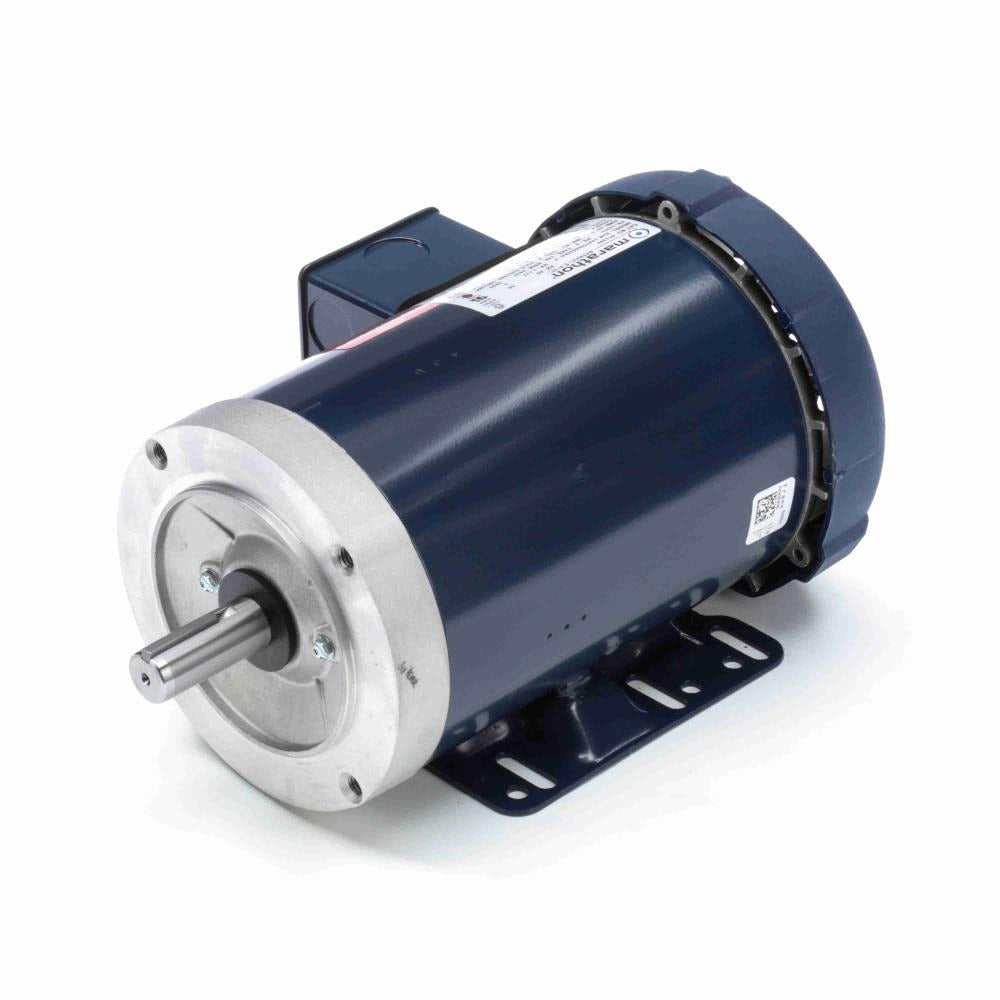

Marathon MGT1203 General Purpose Motor 1 1/2 HP 230/460

Product Description

The Marathon MGT1203 is a three-phase general purpose motor designed for various applications. This electric motor delivers one and a half horsepower and operates at a speed of three thousand five hundred fifteen RPM. It is built with a rolled steel material and features a totally enclosed fan-cooled (TEFC) design, which helps protect the motor from harsh environments.

• Electrical Type: Three Phase
• Motor Frame: 143TC
• Mounting Type: Rigid Base

Product Highlights

This motor is suitable for both indoor and outdoor use, making it versatile for different installations. It offers a voltage rating of two hundred thirty to four hundred sixty volts and can handle various load conditions effectively.

Product Information

Standard Information

• Motor Type: General Purpose Motor
• Weight: 41 lbs

Technical Specifications

• HP: 1.5
• RPM: 3515
• Frame Size: 143TC
• Enclosure: TEFC
• Voltage: 230/460
• Amperage: 4.0/2.0
• Shaft Type: Single
• Phase: Three
