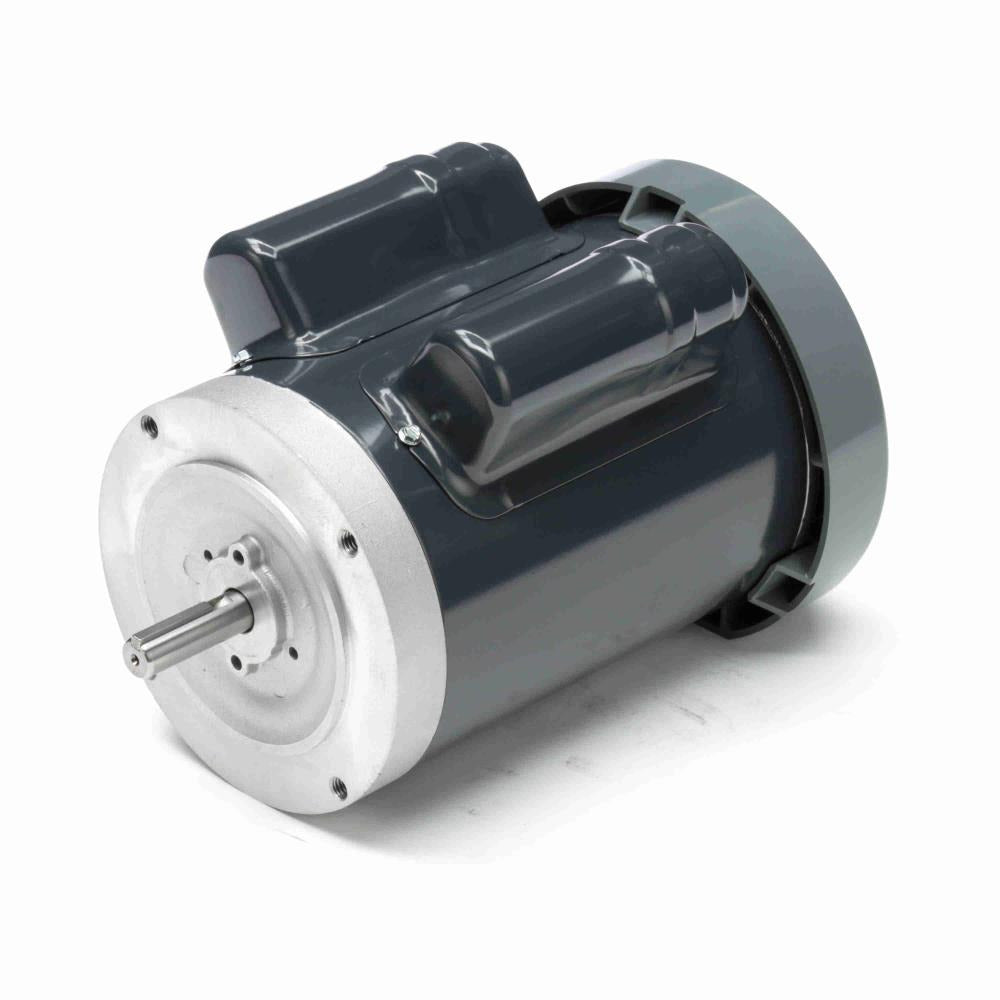

Marathon MEG283 General Purpose Motor 1 HP 1725 RPM TEFC

Product Description

The Marathon MEG283 is a general purpose motor designed for versatile applications. It operates at one horsepower and has a speed of one thousand seven hundred twenty-five RPM. This motor features a totally enclosed fan-cooled (TEFC) design, suitable for various environments.

• Single phase operation with dual voltage options: one hundred to one hundred twenty volts or two hundred to two hundred forty volts.
• Constructed with rolled steel for durability and reliability.
• Mounting type includes a C-Face and is footless, providing flexibility in installation.

Product Highlights

This motor is ideal for HVAC systems, pumps, and other machinery requiring consistent performance.

Product Information

Standard Information

• Electrical Type: Capacitor Start
• Overload Protector: No

Technical Specifications

• Horsepower: 1 HP
• RPM: 1725
• Frame Size: 56
• Diameter: 6.5 inches
• Phase: Single
• Voltage: 100-120/200-240
• Rotation: Reverse
• Mounting Type: C-Face, Footless
• Amperage: 11.8-11.4, 5.9-5.7
• Shaft Type: Single
