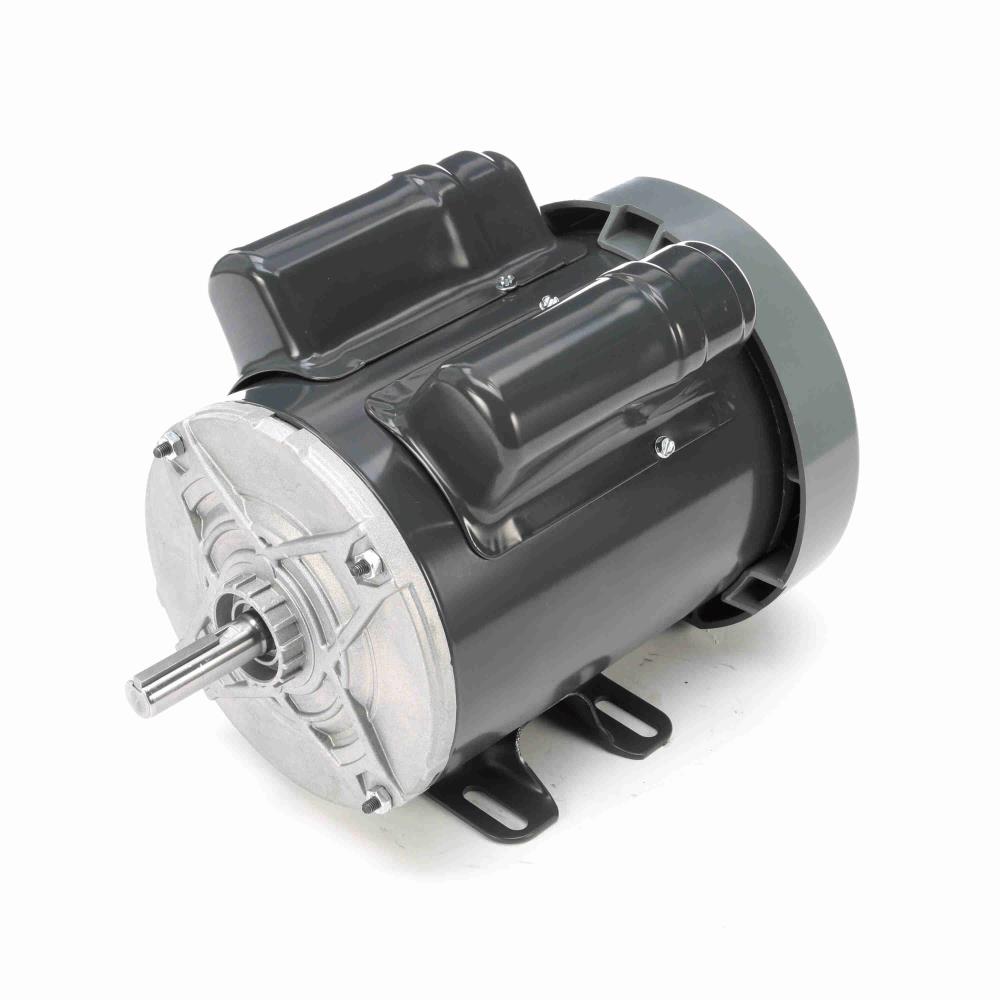

Marathon MEG276 General Purpose Motor 3/4 HP 1725 RPM

Product Description

The Marathon Motors MEG276 is a general-purpose motor designed for a variety of applications. This capacitor-start, single-phase motor operates on a voltage range of 100-120/200-240 volts and delivers reliable performance at 60Hz. The motor features a NEMA 56 frame, allows for reversible rotation, and is equipped with a rigid base mount, making it suitable for diverse installation needs.

• Electrical type: Capacitor start motor for general-purpose uses.
• Operates efficiently at 1725 RPM with a service factor of 1.25.
• Robust construction with rolled steel enclosure and totally enclosed fan-cooled (TEFC) design.

Product Highlights

This motor is ideal for equipment requiring continuous operation, such as fans, pumps, and compressors. Its compact and sturdy design ensures durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MEG276

Technical Specifications

• Electrical Type: Capacitor Start
• Phase: Single
• Input Voltage: 100-120/200-240V
• Frame Size: 56
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Material: Rolled Steel
• Horsepower: 3/4 HP
• Rotation: Reversible
• RPM: 1725
• Service Factor: 1.25
• Current Rating: 9.0-8.8/4.5-4.4 amps at 110-120/200-240 volts
• Frequency: 60Hz
• Shaft: Keyed, 5/8 inches diameter x 1 7/8 inches length
• Mounting Type: Rigid Base Mount
• Bearing Type: Ball Bearings
• Insulation Class: Class B
