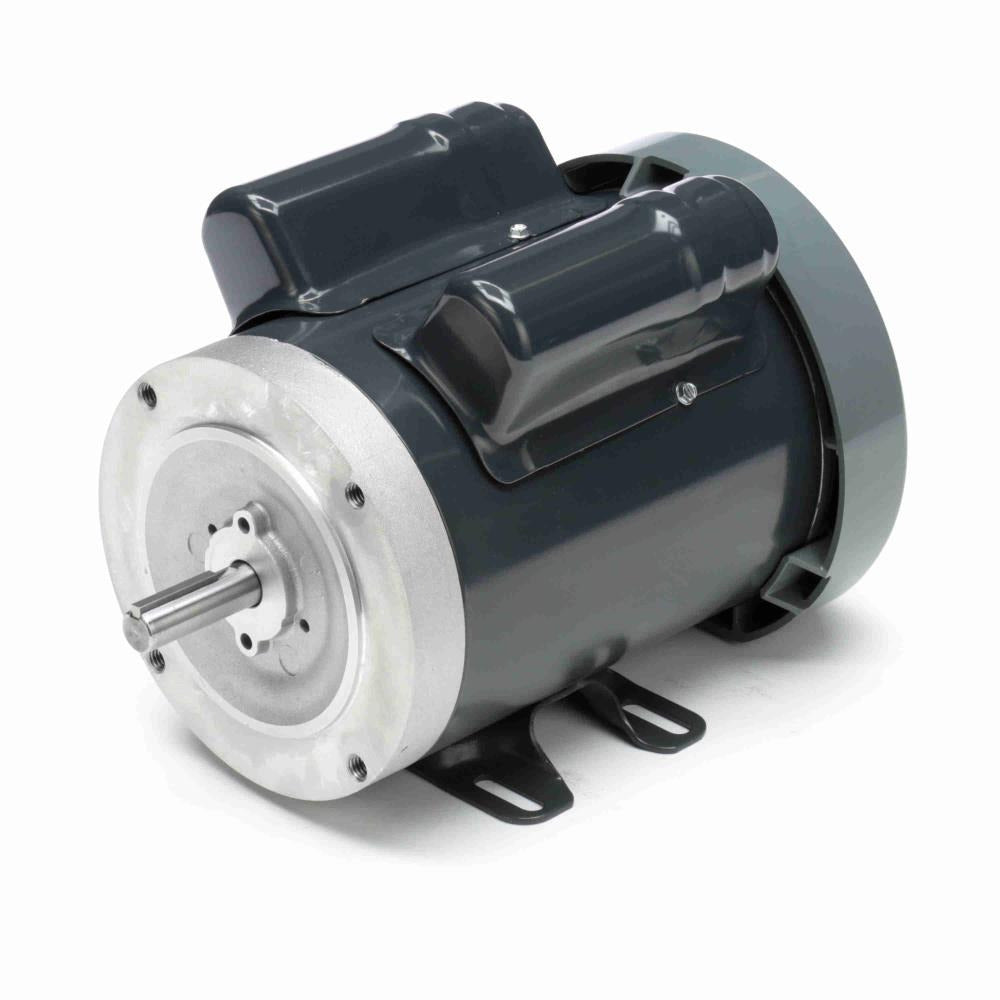

Marathon ME275 General Purpose Motor 3/4 HP 1725 RPM

Product Description

The Marathon ME275 is a general purpose motor suitable for various applications. This electrical motor operates with a capacity of three-fourths horsepower at a speed of one thousand seven hundred twenty-five revolutions per minute. The frame is size fifty-six and features a total enclosure fan cooled design. It is designed to work with voltages ranging from one hundred to one hundred twenty or two hundred to two hundred forty volts and operates on a single phase. This motor uses rolled steel for durability and offers an automatic overload protection system.

• Electrical Type: Capacitor Start
• Weight: Rolled Steel Construction
• Mounting Type: C-Face or Footed

Product Highlights

The Marathon ME275 motor is dependable for HVAC and plumbing applications. It features an efficient design for a variety of commercial and industrial uses.

Product Information

Standard Information

• Brand: Marathon
• MPN: ME275

Technical Specifications

• HP: 3/4
• RPM: 1725
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 100-120/200-240
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Mounting Type: C-Face, Footed
• Amperage: 9.0-8.8, 4.5-4.4
• Shaft Type: Single
