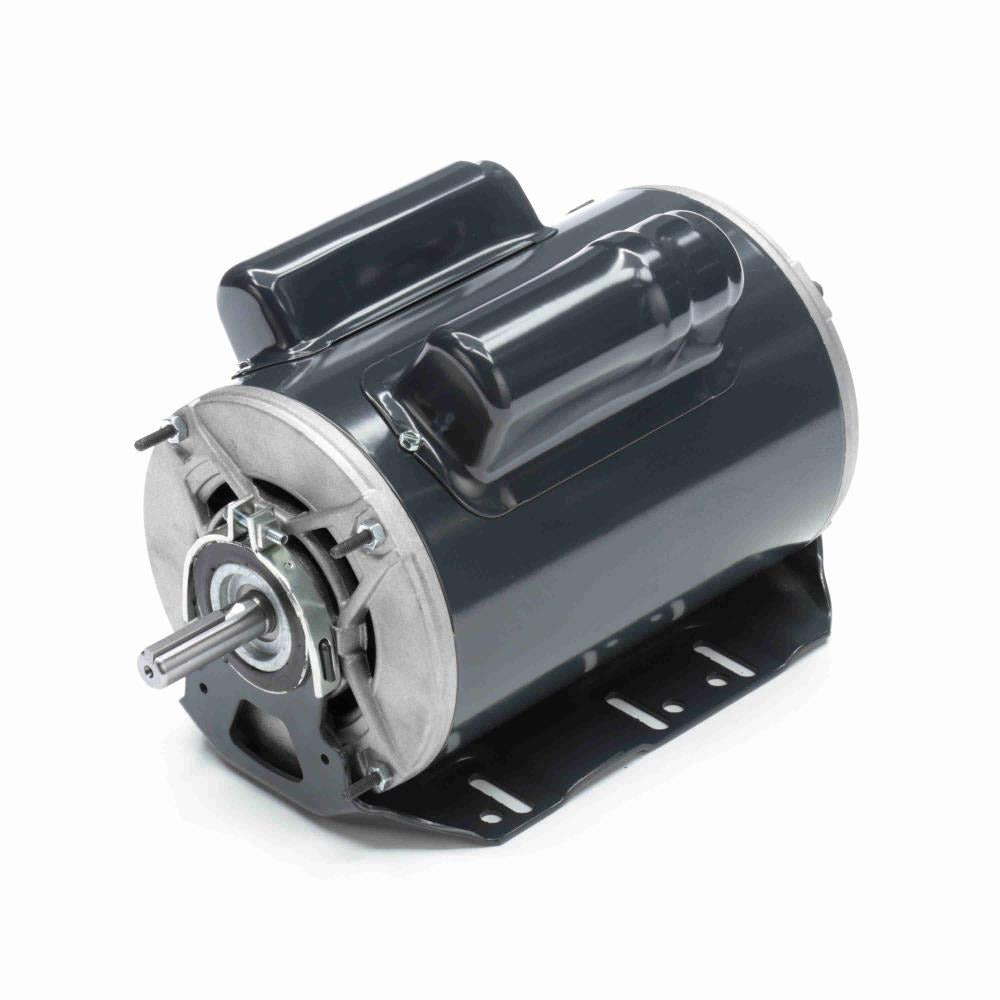

Marathon MC1479 General Purpose Motor 1 1/3 HP 1725 RPM 56H

Product Description

The Marathon MC1479 is a general-purpose motor designed for various applications. This motor operates at 1 1/3 horsepower and delivers consistent performance at a speed of 1725 RPM. It is built with a robust rolled steel enclosure and features a resilient base for mounting. Suitable for both residential and commercial use, it operates on a voltage range of 208-230/190-220, making it versatile for different installations.

• Motor Type: General Purpose
• Frame Size: 56H
• Phase: Single

Product Highlights

This motor features auto overload protection and is designed for efficient operation. Its single shaft type and rolled steel construction ensure durability.

Product Information

Standard Information

• Electrical Type: Cap Start
• Enclosure Type: ODP

Technical Specifications

• Horsepower: 1 1/3
• RPM: 1725
• Frame: 56H
• Diameter: 6.5 inches
• Voltage: 208-230/190-220
• Amperage: 5.3-5.4, 3.6-3.7
• Rotation: REV
• Mounting Type: Resilient Base
