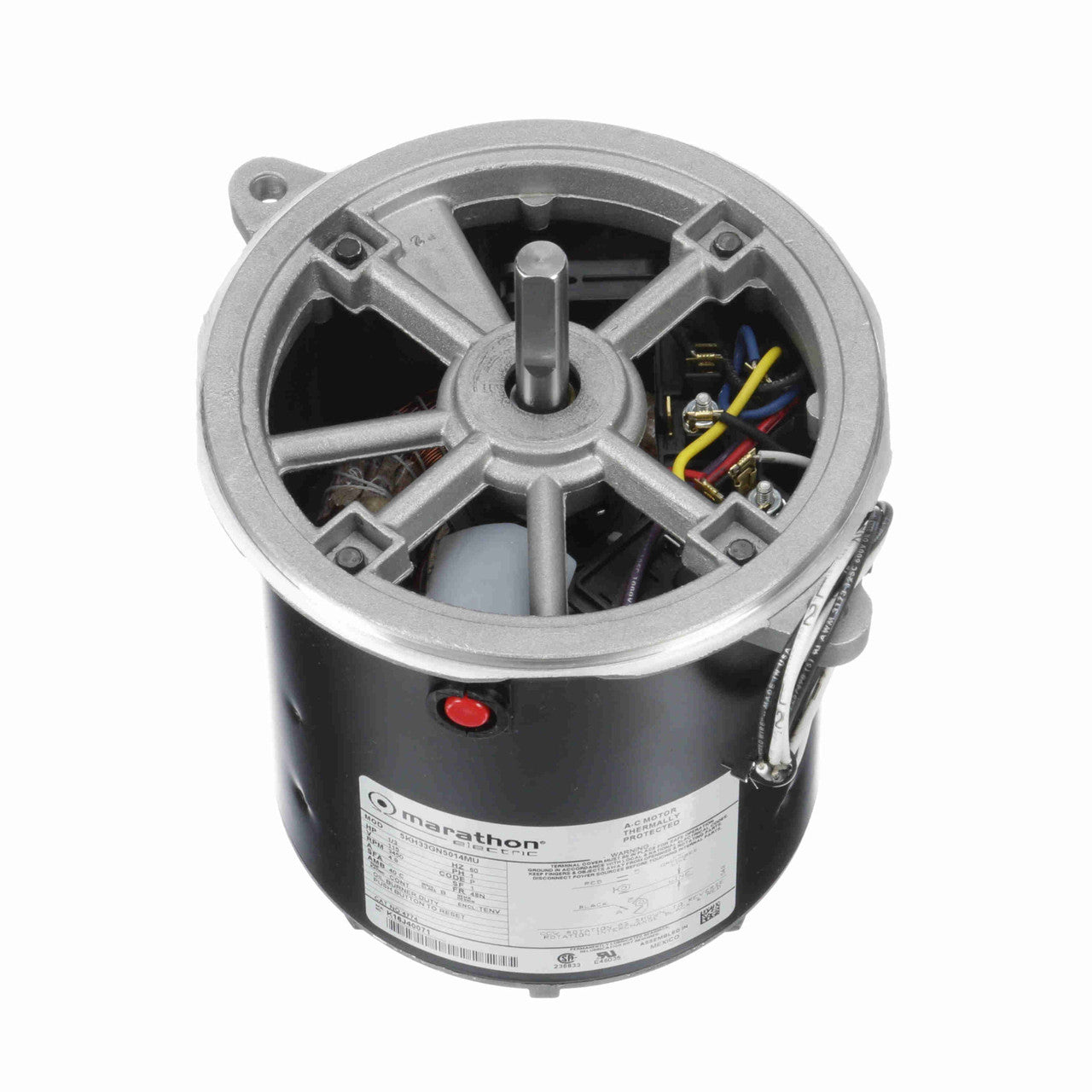

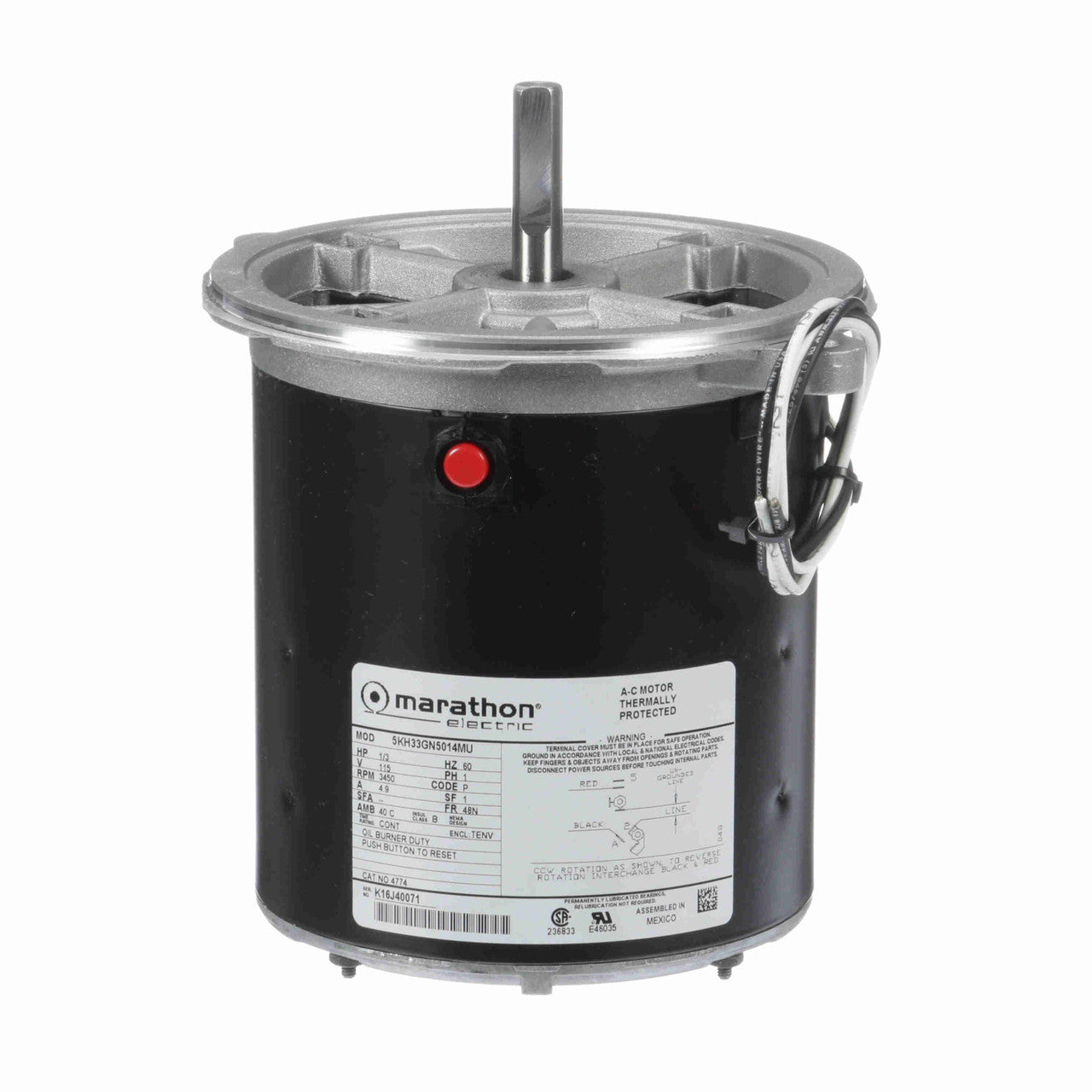

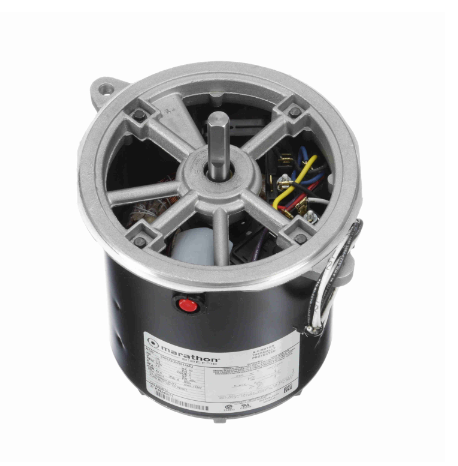

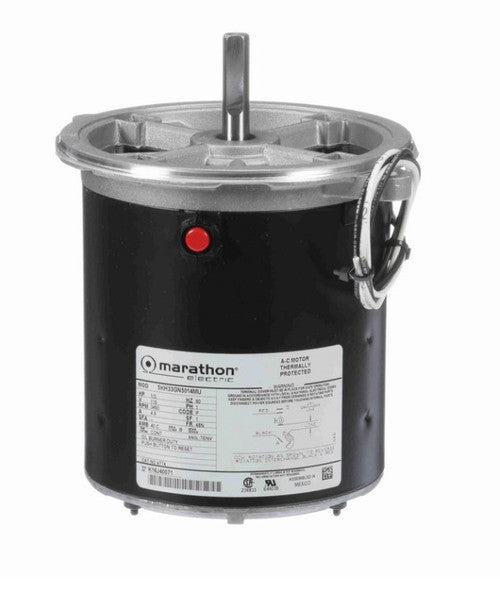

Marathon M4774 Oil Burner Motor 1/3 hp Single Phase Replacement MPN

Product Description

The Marathon Motors M4774 is a reliable oil burner motor designed for diverse applications. This split phase motor has a single phase operation with an input voltage of one hundred fifteen volts, making it suitable for residential and commercial settings. It provides a direct replacement for existing motors in oil burners, hot water pressure systems, and steam cleaners.

• Operates on single phase and has a speed of three thousand four hundred fifty RPM.
• Features reversible rotation for versatile installation.
• Equipped with manual thermal protection to prevent overheating.

Product Highlights

This motor is ideal for continuous duty applications, ensuring dependable operation in heating and cleaning systems.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: M4774

Technical Specifications

• Motor Type: Split Phase
• Horsepower: 1/3 hp
• Input Voltage: 115V
• Speed: Single Speed
• RPM: 3450 RPM
• Amperage: 4.9A
• Service Factor: 1.0
• Frame Size: 48N
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Rotation: Reversible
• Weight: 15 lbs
• Frequency: 60 Hz
• Bearings: Ball Bearings
• Insulation Class: Class B
• Shaft Size: 1/2 x 1.88
