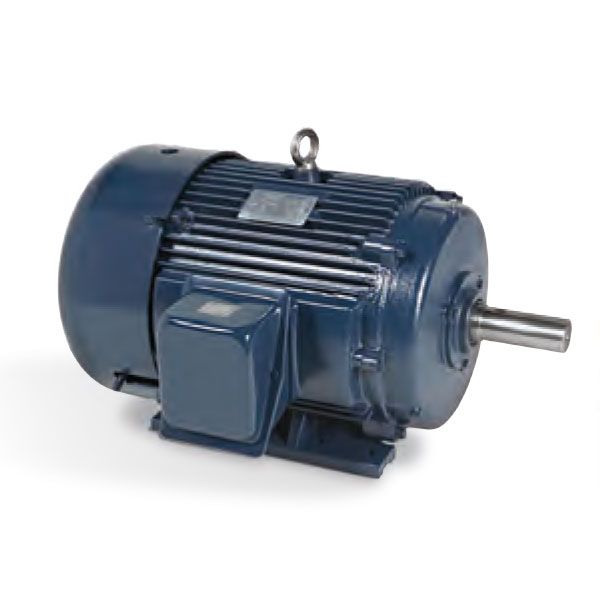

Marathon GT1033A MAR 40 HP 324TS TEFC

Product Description

The Marathon GT1033A is a 40 HP general-purpose motor designed for three-phase applications. It operates at a speed of three thousand six hundred RPM and can work with voltages of two hundred eight to four hundred sixty volts. This motor is suitable for demanding industrial and commercial pumping applications such as water transfer and circulation.

• Designed for continuous duty operation
• Features a totally enclosed fan-cooled (TEFC) enclosure
• Compliant with NEMA standards and EISA2024 hazardous duty requirements

Product Highlights

The Marathon GT1033A provides efficient power for various industrial applications. This motor includes a robust cast iron frame and is inverter duty capable, allowing for variable torque applications.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Manufacturer: Marathon Electric Motors

Technical Specifications

• Power Rating: 40 HP
• Speed: 3600 RPM
• Voltage: 208-230/460 V
• Phases: 3
• Frequency: 60 Hz
• Frame Size: 324 TS
• Enclosure Type: Totally Enclosed Fan Cooled
• Shaft Type: TS
• Efficiency: 92.4%
• Weight: 600 lbs
