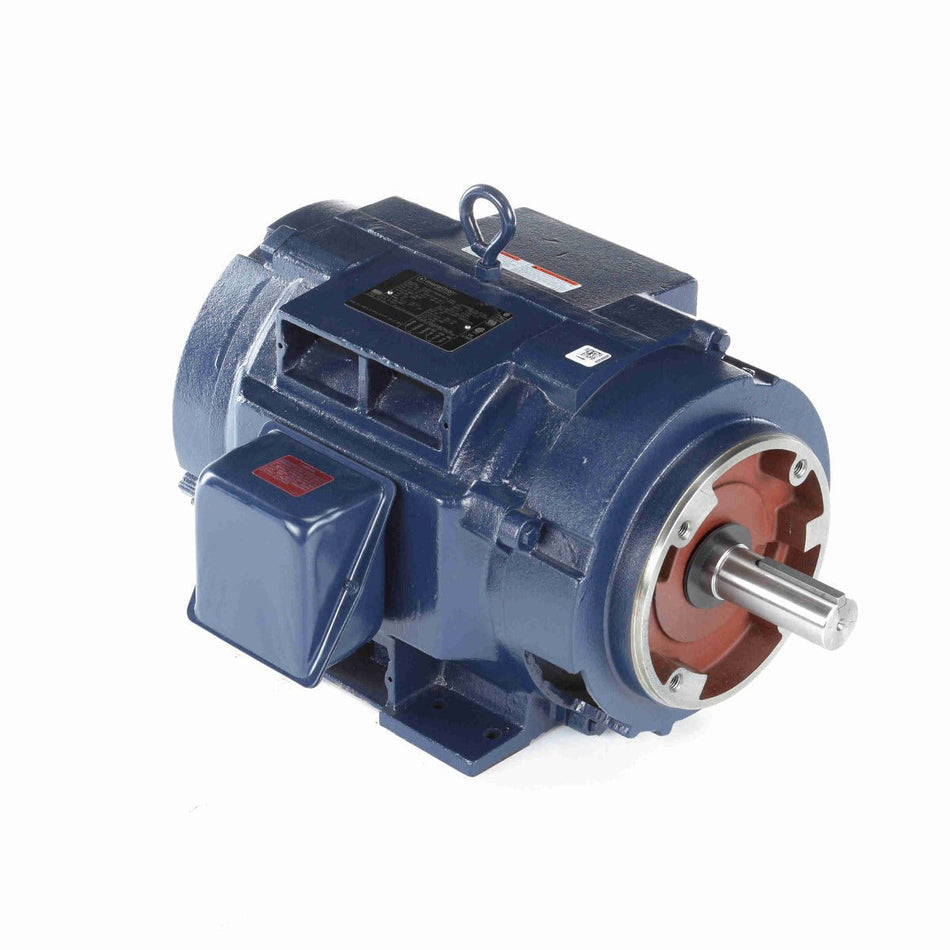

Marathon GT0262 Globetrotter 20 HP (256TC) 256TTDBD6028

Product Description

The Marathon GT0262 is a Marathon Motors Globetrotter three-phase general purpose electric motor (MPN GT0262) rated 20 HP (15 kW) with a nominal speed of 1770 RPM. It operates on 230/460 V, 60 Hz and features a 256TC rolled steel frame, open drip-proof enclosure, C-face/rigid mounting and inverter-duty capability. The motor uses Class F insulation, is reversible, rated for continuous duty, and is certified to CSA, UL and CE standards.

• 20 HP (15 kW), 1770 RPM, 4-pole three-phase motor; 230/460 V, 60 Hz
• 256TC rolled steel frame, ODP enclosure, C-face/rigid mounting
• Inverter-duty capable (10:1 variable/constant torque), Class F insulation, CSA/UL/CE certified

Product Highlights

20 HP three-phase motor; 230/460 V; 256TC ODP frame; inverter duty; Class F insulation; CSA, UL, CE approvals

Product Information

Standard Information

• Brand: MARATHON MOTORS
• Manufacturer Part Number: GT0262
• Country of Origin: Mexico

Technical Specifications

• Brand: Marathon Motors
• MPN: GT0262
• Product line: Globetrotter
• Catalog Number: GT0262
• Model Number: 256TTDBD6028
• Horsepower: 20 HP
• Power (kW): 15 kW
• Rated Speed: 1770 RPM
• Listed RPM (alternate): 1800 RPM
• Input Voltage: 230 V, 460 V
• Frequency: 60 Hz
• Phase: 3
• Poles: 4
• Frame: 256TC
• Enclosure: ODP (Open Drip Proof)
• Frame Material: Rolled Steel
• Mounting: C-Face / Rigid
• Service Factor: 1.15 (sinewave), 1.0 (IGBT)
• Nominal Efficiency: 93%
• Nominal Power Factor: 83.5%
• KVA Code: G
• NEMA Design: B
• Degree of Protection (IP): IP22
• Insulation Class: F
• Rotation: Reversible
• Duty: Continuous
• Conduit Box Location: F1/F2
• Removable Feet: No
• Orientation: Horizontal
• Ambient Temperature Rating: 40 °C
• DE Bearing: Ball
• NDE Bearing: Ball
• Shaft Diameter: 1.625"
• Greaseable: No
• Double Drilled: No
• Number of Speeds: 1
• Hazardous Location Certification: CSA Certified Class 1 Division 2
• Agency Approvals: CSA, UL, CE
• Country of Origin: Mexico
