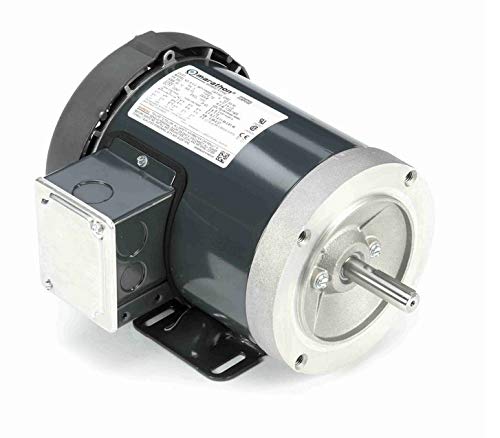

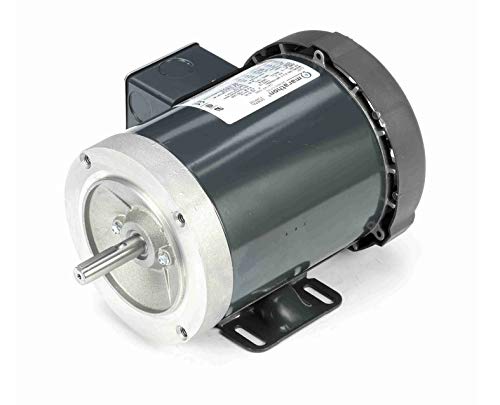

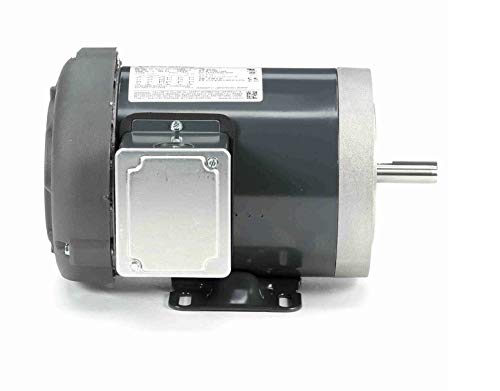

Marathon G582 General Purpose Three Phase Motor 3/4 HP 1800 RPM 208-230/460V 56C Frame

Product Description

The Marathon G582 General Purpose Three Phase Motor by Marathon is ideal for various industrial and commercial applications. This motor provides reliable performance in demanding environments.

• 3/4 HP with 1800 RPM
• 208-230/460 Volts
• 56C Frame suitable for horizontal and vertical mounting

Product Highlights

This Marathon motor is designed for general-purpose use on gear reducers, pumps, machine tools, and other direct-coupled equipment. It operates effectively in damp, dusty, or dirty environments. With its unique 'Four-in-One' design, it can replace Dripproof, TEFC, C-Face, or Rigid Base motors across a range of industrial applications.

Product Information

Standard Information

• Brand: Marathon
• MPN: G582

Technical Specifications

• Horsepower: 3/4 HP
• Speed: 1800 RPM
• Voltage: 208-230/460 Volts
• Frame: 56C
• Amps: 2.6-3.0/1.5 Amps
• Mounting: F1
• Base: Bolt-on removable base
• Hertz: Rated 60/50 Hertz
