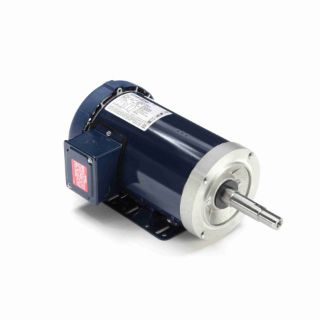

Marathon Electric U363A MAR Close Coupled Pump Motor - 3 HP 3600 RPM 230/460 V 145JM Frame

Product Description

The Marathon Electric U363A MAR is a close-coupled pump motor designed to deliver efficient performance in various applications. It has a power rating of three horsepower and operates at a speed of 3600 RPM. This three-phase motor can use both 230 and 460 volts, making it versatile for different system needs.

• NEMA JM pump shaft dimensions
• Continuous duty motor for reliable operation
• Robust totally enclosed fan cooled design

Product Highlights

This motor supports applications that require a durable and continuous power source. Ideal for industrial and commercial pump systems, it ensures high efficiency and long life.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: U363A MAR

Technical Specifications

• Phase: 3
• Voltage: 230/460 V
• Service Factor: 1.15
• Insulation Class: F
• Efficiency: 87.5%
• Frame Size: 145JM
• Max Ambient Temperature: 40 °C
• Frame Material: Rolled Steel
