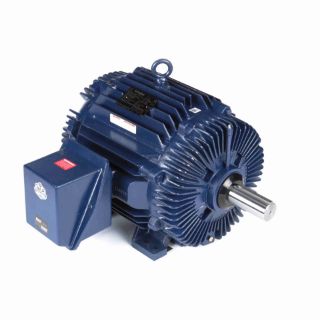

Marathon Electric U1875 Cooling Tower Motor 40 HP 1800 RPM 230/460 V 324TV TEAO

Product Description

The Marathon Electric U1875 is a 40 horsepower cooling tower motor designed for continuous duty applications. This three-phase motor operates at 1800 RPM and is compatible with 230/460 voltage systems. With its rugged 324TV frame and TEAO design, the U1875 is built for durability and efficient performance.

• 40 HP cooling tower motor with 1800 RPM
• Cast iron construction for reduced vibration
• Suitable for horizontal or vertical mounting

Product Highlights

This motor meets or exceeds NEMA Premium efficiency standards and complies with EISA2007 regulations. It features a fully cast iron design that enhances rigidity and minimizes vibrations during operation. The motor includes a MAX GUARD® Class F insulation system and comes with extended grease tubes for maintenance ease.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: U1875 MAR

Technical Specifications

• Power Rating: 40 HP
• Voltage: 230/460 V
• Frame Size: 324TV
• Speed: 1800 RPM
• Phase: 3
• Efficiency: 94.1%
• Service Factor: 1.15
• IP Code: 56
