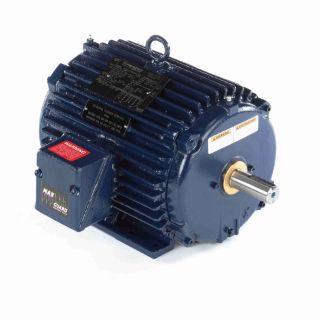

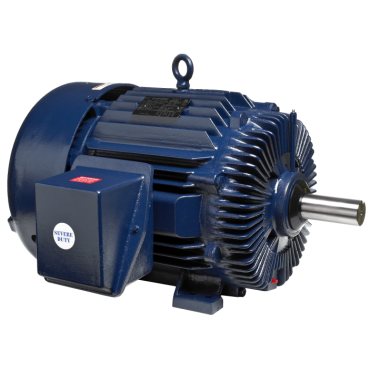

Marathon Electric U1868 | 5 HP | 230/460V | TEAO | 184T

Product Description

The Marathon Electric U1868 is a severe duty AC motor designed for industrial applications. With a power rating of five horsepower, it operates at both 230 and 460 volts. The motor features a Totally Enclosed Air Over (TEAO) enclosure and is rated at 1800 RPM, ensuring effective cooling and efficiency.

• Five horsepower rating
• 230/460 volts with three-phase power
• 184T frame size

Product Highlights

This motor meets or exceeds NEMA Premium® efficiencies and offers a bearing current protection system. It is built with a strong cast iron construction that minimizes vibration and enhances durability.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• MPN: U1868

Technical Specifications

• Enclosure: TEAO
• Efficiency Group: NEMA Premium®
• Frame Size: 184T
• Rated Voltage: 230/460
• Rated Frequency: 60 Hz
• RPM: 1800
• Service Factor: 1.15
• Weight: 128.0 LB
