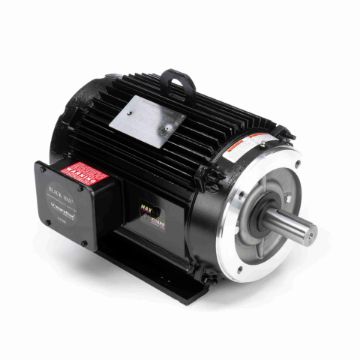

Marathon Electric Motors Y560 Variable Speed Motor 7.50 HP 575V 213TC Frame

Product Description

The Marathon Electric Motors Y560 MAR is a 7.50 HP variable speed motor designed for three-phase applications. Operating at 1800 RPM with a voltage of 575, this motor features a 213TC frame and a totally enclosed non-ventilated design. Ideal for various industrial and commercial applications where reliable performance is needed.

• 3-phase operation with constant torque from zero to base speed
• Designed for use with IGBT inverters and equipped with encoder and brake provisions
• Constructed with aluminum for enhanced durability and reduced weight

Product Highlights

Engineered for consistent performance, the Y560 MAR motor is optimized for inverter duty and supports a range of operational settings, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Part Number: Y560 MAR

Technical Specifications

• Power Rating: 7.50 HP
• Voltage: 575 V
• Speed: 1765 RPM
• Phases: 3
• Frame Size: 213
• Efficiency: 90.2%
• Insulation Class: F
• Service Factor: 1
• Mounting Type: Rigid Base
• Weight: 8.4 A
• Max Ambient Temperature: 40°C
• Enclosure Type: Totally Enclosed Non Ventilated
