Marathon Electric Motors Y556 Variable Speed Motor 1 HP 3 Phase 575 V

Product Description

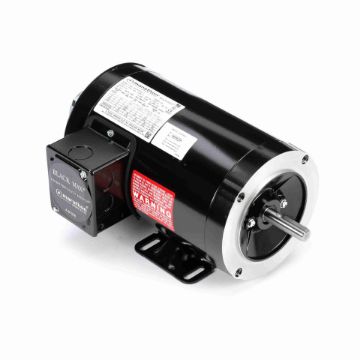

The Marathon Electric Motors Y556 is a one horsepower variable speed motor designed for three-phase operation. With a speed of one thousand eight hundred RPM, it is suitable for various industrial applications where variable speed is necessary. This motor runs at a voltage of five hundred seventy-five volts and has a frame size of fifty-six C. It features a Totally Enclosed Non-Ventilated (TENV) design for enhanced durability.

• Designed for continuous duty operation
• Optimized for use with inverter drives
• Includes encoder and brake provisions

Product Highlights

This motor is optimized for inverter duty, providing constant torque and horsepower performance, thus ensuring efficiency in demanding applications.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: Y556 MAR

Technical Specifications

• Power Rating (HP): 1
• Speed (RPM): 1800
• Voltage: 575
• Phases: 3
• Current (A): 1.2
• Frame Size: 56C
• Insulation Class: F
• Efficiency: 84%
• Enclosure Type: Totally Enclosed Non Ventilated
• Rotation: Reversible
• Mounting Type: Rigid Base
• Maximum Ambient Temperature: 40°C
