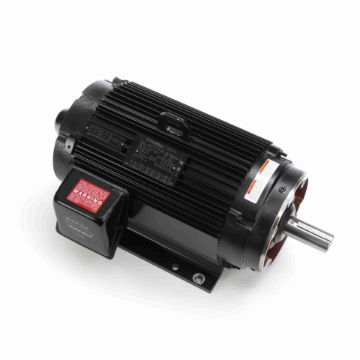

Marathon Electric Motors Y548 MAR 10 HP Variable Speed Motor 3 Phase 230/460 V

Product Description

The Marathon Electric Motors Y548 is a 10 HP variable speed motor designed for three-phase applications at 230/460 volts. It operates at a speed of one thousand two hundred RPM. With a robust aluminum frame and Totally Enclosed Non-Ventilated (TENV) enclosure, it is built for continuous duty use, making it suitable for various industrial applications.

• Rated for continuous duty with 10 HP power output
• Constructed to operate efficiently with IGBT inverters
• Equipped with encoder and brake provisions for enhanced functionality

Product Highlights

This motor offers constant torque operation from zero to base speed, ensuring reliability in variable speed applications. It has a design optimized for durability and efficiency, making it ideal for HVAC systems and other heavy-duty industrial uses.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: Y548 MAR

Technical Specifications

• Power Rating (HP): 10
• Voltage: 230/460
• Current: 28.0/14.0
• Speed: 1160 RPM
• Frame Type: 256TC
• Duty: Continuous
• Efficiency: 89.5%
• Max Ambient: 40°C
