Marathon Electric Motors Y547 Variable Speed Motor 10 HP 230/460V Replacement MPN

Product Description

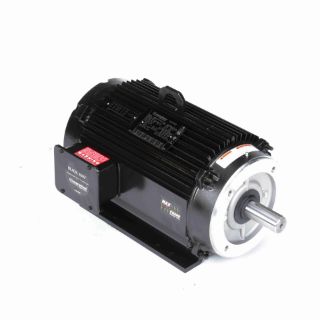

Marathon Electric Motors Y547 is a 10 HP variable speed motor designed for three-phase applications. This motor operates at one thousand eight hundred RPM and is suitable for voltages of two hundred thirty or four hundred sixty volts. The motor features a robust 215TC frame and a totally enclosed non-ventilated enclosure.

• Constant torque performance from zero to base speed
• Optimized for use with IGBT inverters
• Includes encoder and brake provisions

Product Highlights

This motor is efficient and durable, making it ideal for continuous duty applications.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: Y547 MAR

Technical Specifications

• Power Rating: 10 HP
• Voltage: 230/460
• Current: 27.0/13.5 Amps
• Enclosure Type: Totally Enclosed Non Ventilated
• Frame Size: 215TC
• Speed: 1774 RPM
• Efficiency: 90.2%
• Mounting Type: Rigid Base
• Ambient Temperature: Up to 40 degrees Celsius
• Number of Phases: 3
• IP Code: 43
