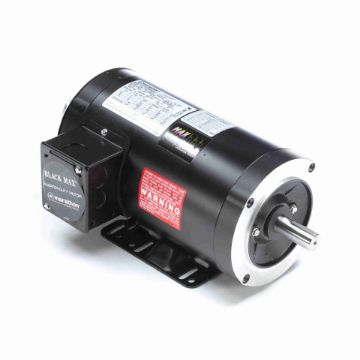

Marathon Electric Motors Y538 Variable Speed Motor 1.5 HP 230/460 V

Product Description

The Marathon Electric Motors Y538 is a variable speed motor designed for continuous operation. With a power rating of one point five horsepower, this three-phase motor runs at a speed of one thousand eight hundred RPM. It operates at a voltage of two hundred thirty to four hundred sixty volts and features a frame size of one hundred forty-five TC.

• Max Guard Class F insulation system
• Constant torque operation from zero to base speed with vector drive
• Encoder and brake provisions included on opposite drive end

Product Highlights

This motor is optimized for operation with IGBT inverters and includes normally closed thermostats. It has a bolt-on removable base for flexible mounting options.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: Y538 MAR

Technical Specifications

• Power Rating (HP): 1.50
• Voltage: 230/460
• Phases: 3
• Speed: 1755 RPM
• Efficiency: 85.5
• Frame Size: 145
• Enclosure Type: Totally enclosed non-ventilated
• Service Factor: 1
