Marathon Electric Motors Y537 MAR 1 HP Variable Speed Motor 3 Phase 230/460 V

Product Description

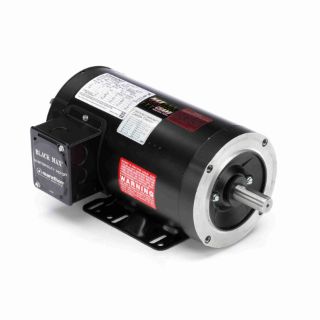

The Marathon Electric Motors Y537 is a one horsepower variable speed motor designed for three-phase operation. It operates at twelve hundred RPM and supports dual voltage of two hundred thirty or four hundred sixty volts. This motor features a TENV (Totally Enclosed Non-Ventilated) construction and comes with a frame size of 145TC.

• Constant Torque operation from zero to base speed on Vector Drive.
• Encoder and brake provisions are included for added functionality.
• Durable steel frame construction ideal for industrial applications.

Product Highlights

This motor is ideal for various applications requiring precise speed control and reliability.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Manufacturer: Marathon Electric Motors

Technical Specifications

• Power Rating: 1 HP
• Voltage: 230/460 V
• Phases: 3
• Speed: 1200 RPM
• Frame Size: 145TC
• Efficiency: 80%
• Service Factor: 1
• Frame Material: Rolled Steel
• Insulation Class: F
• Protection Type: IP 43
• Mounting Type: Bolt-on Base
• Motor Orientation: Horizontal
• Country of Origin: Mexico
