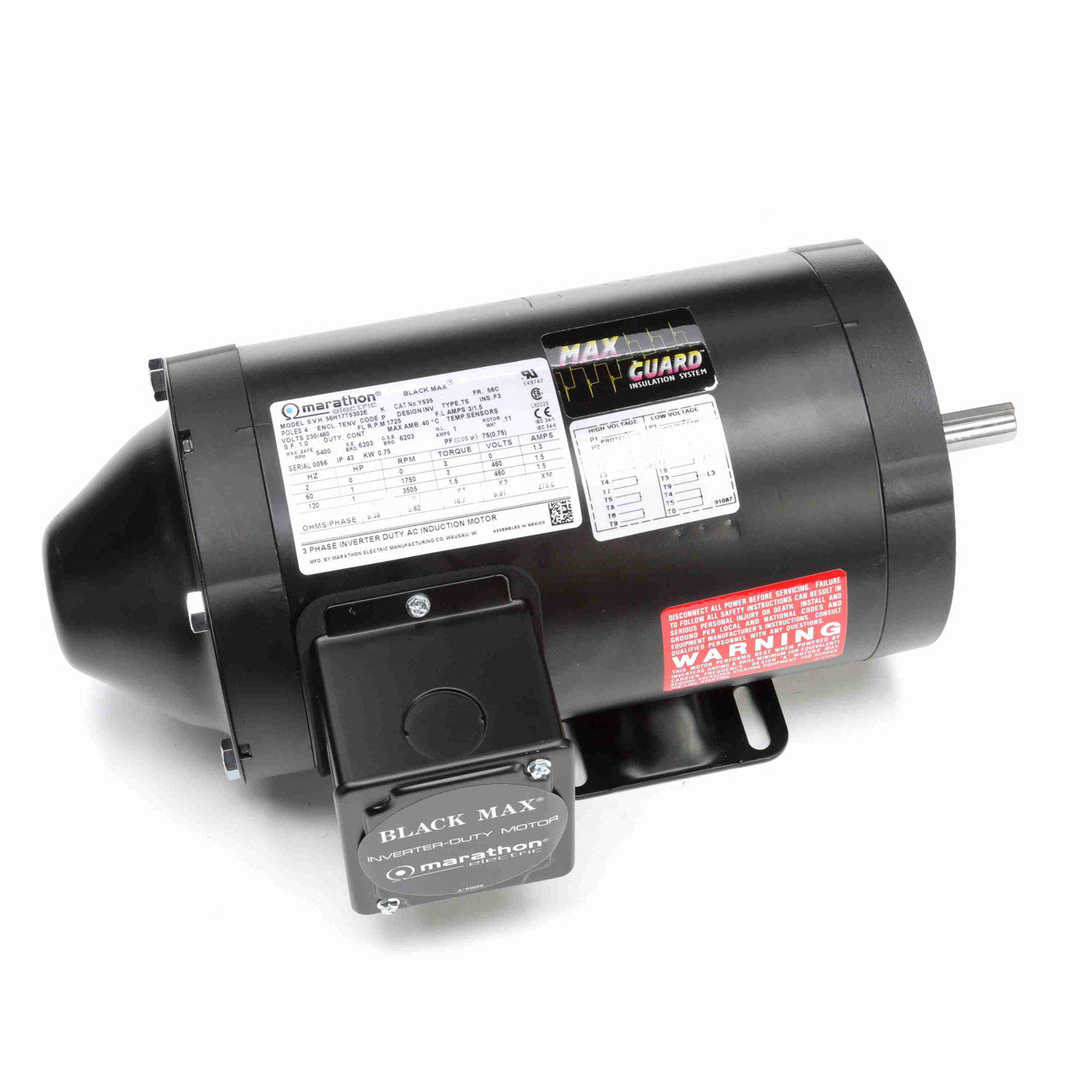

Marathon Electric Motors Y535A 1 HP 230/460V Electric Motor

Product Description

The Marathon Electric Motors Y535A is a three-phase electric motor suitable for industrial applications. It operates at 230 or 460 volts and delivers a speed of one thousand seven hundred twenty-five to one thousand eight hundred RPM. This model features a Totally Enclosed Non-Ventilated (TENV) enclosure, ensuring durable performance under various conditions.

• Three-phase motor with voltage options of 230V and 460V
• Equipped with a TENV enclosure for protection
• Designed for constant torque operation suitable for vector drives

Product Highlights

This motor is ideal for applications requiring steady performance and efficiency. It includes thermal protection and is designed to meet vector duty requirements, making it versatile for different industrial uses.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• MPN: Y535A

Technical Specifications

• Output Power: 1 HP
• Output Power (KW): 0.75 kW
• Speed: 1750-1800 RPM
• Voltage: 230/460 V
• Frequency: 60 Hz
• Phase: 3
• Frame Size: 56C
• Enclosure Type: TENV
• Mounting Type: C-Face with removable base
• Full Load Amps: 3.0/1.5 A
• Efficiency: 84%
• Thermal Protection: Thermostat
• Application: Vector Duty
• Max Safe RPM: 5400
