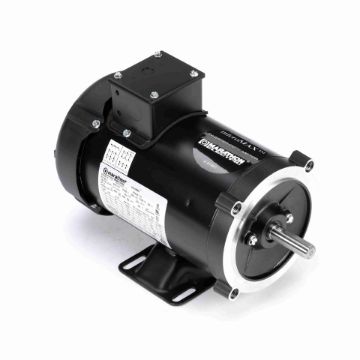

Marathon Electric Motors Y364 Variable Speed Motor 1 HP 3 Phase 1800 RPM

Product Description

The Marathon Electric Motors Y364 is a 1 HP variable speed motor designed for three-phase applications. This motor operates at 1800 RPM and is compatible with voltage ratings of 230/460 V. It features a 56C frame and is totally enclosed fan cooled (TEFC) for enhanced durability and performance.

• Replaces PMDC motors when used with a variable frequency drive (VFD).
• Constant horsepower up to double the base speed (RPM).
• Equipped with Class H insulation and CR200 magnet wire.

Product Highlights

This motor eliminates the need for brush and commutator maintenance, making it ideal for continuous duty applications.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Part Number: Y364 MAR

Technical Specifications

• Power Rating (HP): 1
• Phases: 3
• Speed: 1725 RPM
• Voltage: 230/460 V
• Frame Size: 56
• Current: 3.2/1.6 A
• Service Factor: 1
• Efficiency: 78.5%
