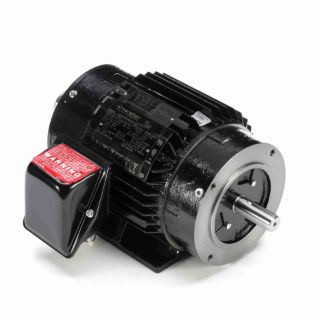

Marathon Electric Motors Y285 Variable Speed Motor 2 HP 230/460 V

Product Description

The Marathon Electric Motors Y285 is a two horsepower variable speed motor designed for three-phase operation. It runs at 1800 RPM and is compatible with both 230 and 460 volt systems. This motor features a 145TC frame and a totally enclosed non-ventilated design, making it suitable for a variety of industrial applications.

• Integrated Dynapar HS20 encoder offers high precision with 1024 ppr.
• Field reversible for flexible installation options.
• Constant torque operation supports a wide range of speeds on vector drive systems.

Product Highlights

The Y285 motor is ideal for continuous duty and fits well in applications that require reliable performance with minimal maintenance.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Duty Cycle: Continuous

Technical Specifications

• Power Rating (HP): 2
• Voltage: 230/460
• Speed: 1750 RPM
• Phases: 3
• Current: 6.0/3.0
• Efficiency: 85.5%
• IP Code: 43
• Frame Size: 145
