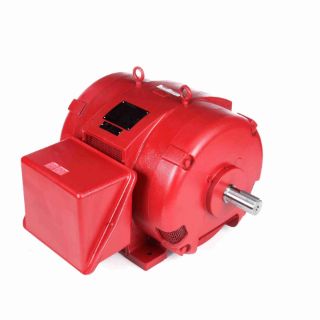

Marathon Electric Motors U530 Fire Pump Motor 125 HP 3 Phase 404TS

Product Description

The Marathon Electric Motors U530 is a 125 HP fire pump motor designed for three-phase applications. It operates at 3600 RPM and supports a voltage input of 230/460 volts. This motor is built with a 404TS frame and is suitable for both continuous duty and various starting methods.

• Fire pump motor rated at 125 HP.
• Continuous duty with a 3600 RPM speed.
• Compatible with wye-delta or across-the-line starting methods.

Product Highlights

This motor is ideal for use in heavy-duty pumping applications. Its robust construction ensures reliable performance and longevity.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: U530 MAR

Technical Specifications

• Power Rating: 125 HP
• Voltage: 230/460 V
• Phases: 3
• Current: 284.0/142.0 A
• Enclosure Type: Drip Proof
• Efficiency: 93.6%
• Frame Size: 404 TS
• Rotation: Reversible
• Mounting Type: Rigid Base
• Max Ambient Temperature: 50 °C
• Service Factor: 1.15
• IP Code: 12
• Country of Origin: United States of America
