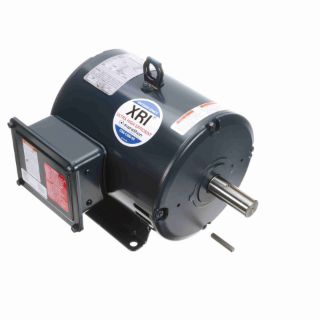

Marathon Electric Motors U425B General Purpose Motor 3 HP 3 Phase 200-208 V

Product Description

The Marathon Electric Motors U425B is a three-phase motor designed for general use. It operates at three horsepower with a speed of one thousand eight hundred RPM. This model is rated for a voltage range of two hundred to two hundred eight volts and comes in a frame size of one hundred eighty-two T. The design is open drip proof, ensuring it performs efficiently in a variety of environments.

• Meets EISA compliance standards for energy efficiency.
• Can be equipped with a C-face kit; offers F1 mounting only.
• Reversible operation for diverse installation needs.

Product Highlights

Ideal for HVAC applications, this durable motor supports continuous duty operation while delivering high reliability and performance.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part #: U425B MAR

Technical Specifications

• Power Rating (HP): 3
• Voltage: 200-208
• Efficiency: 89.5%
• Frame Size: 182
• Phases: 3
• Current: 9.0-8.9
• Rotation: Reversible
• Speed: 1760 RPM
