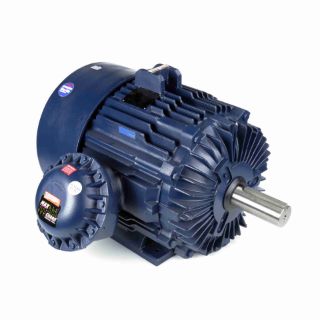

Marathon Electric Motors U090A | 112848884 150 HP Explosion Proof Motor 3 Phase 460V 445T Frame EPFC

Product Description

The Marathon Electric Motors U090A is a 150 horsepower explosion-proof motor designed for various industrial applications. This motor operates on a three-phase system with a standard voltage of four hundred sixty volts. It features a rigid construction and is ideal for environments requiring explosion-proof equipment.

• 150 HP explosion-proof motor
• Operates at 1200 RPM
• Suitable for use in hazardous locations

Product Highlights

The U090A motor meets NEMA Premium efficiency standards and is built with a Class F insulation system. Its robust design ensures durability and reduced vibration during operation.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• MPN: U090A

Technical Specifications

• Power Rating (HP): 150
• Power Rating (kW): 112.0
• Voltage: 460
• Current: 181.0
• Speed: 1190 RPM
• Frame Size: 445
• Duty: Continuous
• Frame Type: 445T
• Enclosure Type: Explosion Proof Fan Cooled
• Service Factor: 1.15
• Motor Orientation: Horizontal
• Mounting Type: Rigid Base
• Max Ambient: 40°C
• Number of Poles: 6
• Shaft Diameter (IN): 3.375
