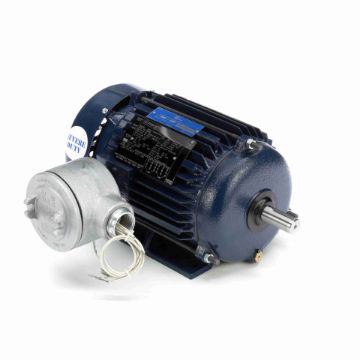

Marathon Electric Motors U003A MAR 2 HP Explosion Proof Motor 3 Phase 230/460 V

Product Description

The Marathon Electric Motors U003A is a two horsepower explosion proof motor designed for continuous operation in demanding environments. With a three-phase power supply and an operational speed of eighteen hundred RPM, this motor is well-suited for various industrial applications.

• Explosion proof construction suitable for hazardous locations.
• Operates at 230/460 volts with a continuous duty cycle.
• High efficiency design rated at 86.5 percent.

Product Highlights

This motor provides reliable performance with advanced features. The durable cast iron frame supports reduced vibration and enhances longevity. Ideal for use with variable frequency drives and offers a service factor of 1.15, ensuring robust functionality.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: U003A MAR

Technical Specifications

• Power Rating: 2 HP
• Voltage: 230/460 V
• Speed: 1755 RPM
• Phases: 3
• Frame Size: 145T
• Insulation Class: F
• Efficiency: 86.5%
• Starting Type: Line or Inverter
• Enclosure Type: Explosion Proof Fan Cooled
• Temperature Code: T3B
• Country of Origin: United States of America
