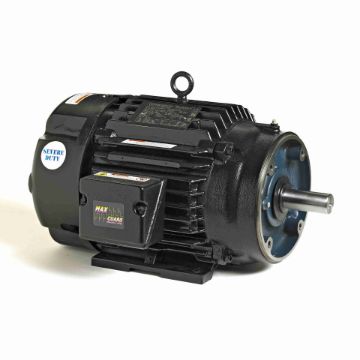

Marathon Electric Motors SY068 MAR 7.50 HP 3 Phase

Product Description

The Marathon Electric Motors SY068 MAR is a seven point five horsepower permanent magnet alternating current motor is designed for high efficiency and performance. With a three-phase operation and a rotational speed of eighteen hundred RPM, it serves a variety of applications. This motor operates on a voltage range of two hundred thirty to four hundred sixty volts and is built within a two hundred thirteen TC frame. It features a totally enclosed fan cooled (TEFC) design that ensures protection against dust and moisture.

• High power density and low weight design
• Equipped with class F thermostats for thermal protection
• Designed for inverter-only starting

Product Highlights

This motor is ideal for continuous duty applications. The design includes provisions for bearing current protection. It is commonly used in HVAC systems, pumping applications, and various industrial settings.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Availability: 1-2 weeks based on manufacturer stock

Technical Specifications

• Power Rating (HP): 7.50
• Voltage: 230/460 V
• Current: 16.6/8.3 A
• Speed: 1800 RPM
• Phases: 3
• Frame Size: 213TC
• Enclosure Type: Totally Enclosed Fan Cooled
• Motor Orientation: Horizontal
