Marathon Electric Motors SY004 MAR Permanent Magnet Motor 1.50 HP 230/460 V Replacement MPN

Product Description

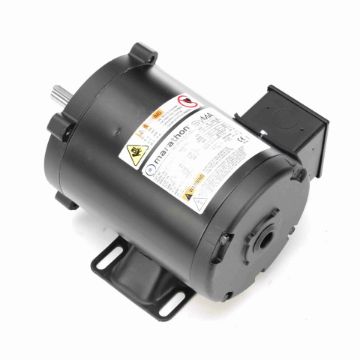

The Marathon Electric Motors SY004 MAR is a permanent magnet motor with a power rating of 1.50 HP. It operates at a voltage of 230/460 V and has a speed of 1800 RPM. This three-phase motor features a 56TC frame and is designed with a totally enclosed non-ventilated (TENV) enclosure. It is built for continuous duty applications and can accommodate a wide range of operational environments.

• Power Rating: 1.50 HP with a voltage of 230/460 V
• Speed: 1800 RPM, utilized in various industrial settings
• Frame size: 56 with a rigid base mounting type

Product Highlights

This motor meets or exceeds NEMA Premium (IE3) Class F MAX GUARD insulation standards. It operates with a constant torque over a wide range with variable drive capabilities. The SY004 MAR requires a drive for operation, making it suitable for numerous applications in manufacturing and processing industries.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: SY004 MAR

Technical Specifications

• Power Factor: 96
• Current: 5.7/2.9 A
• Number of Phases: 3
• IP Code: 43
• Max Ambient Temperature: 40°C
• Efficiency: 87.5%
• Frame Material: Rolled Steel
• Motor Orientation: Horizontal
