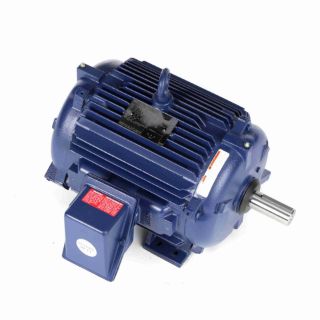

Marathon Electric Motors S510 MAR 5 HP AC Three Phase Motor 215T Frame

Product Description

The Marathon Electric Motors S510 is a five horsepower, three-phase motor designed for durable performance. Operating at twelve hundred RPM and capable of handling four hundred sixty volts, it is suitable for various applications that require reliable motor solutions.

• Integrated suitable for inverter use with a variable torque rating.
• Supports operations in ambient temperatures up to ninety degrees Celsius.
• Constructed with 100% cast iron for increased strength and reduced vibration.

Product Highlights

This motor is built for continuous duty, featuring heat-stabilized ball bearings and high-temperature grease, allowing for a longer service life. It is also designed with extended grease tubes for easy maintenance.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Part Number: S510 MAR

Technical Specifications

• Horsepower: 5
• Voltage: 460
• Phases: 3
• Current: 6.9 A
• Frame Size: 215
• Speed: 1170 RPM
• IP Code: 54
• Efficiency: 87.5%
• Service Factor: 1.15
• Mounting Type: Rigid Base
• Insulation Class: H
• Country of Origin: United States of America
