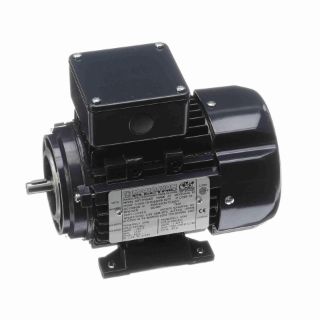

Marathon Electric Motors R361 General Purpose Motor 0.25 HP 230/460 V R361 MAR

Product Description

The Marathon Electric Motors R361 is a 0.25 HP general-purpose motor designed for three-phase applications. It operates at 1800 RPM with a voltage rating of 230/460 volts. This motor features a 63C frame and is totally enclosed fan cooled, making it suitable for various industrial and commercial uses.

• 3-phase motor for reliable performance
• Class F insulation with IP55 rating
• Reversible rotation and continuous duty operation

Product Highlights

This motor meets IE3 European and NEMA Premium efficiencies. It features a MAX GUARD® Class F insulation and runs at a class B rise at rated KW. The motor supports Wye Start-Delta Run on frames 160 and larger, offering a variable torque and constant torque speed range.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: R361 MAR

Technical Specifications

• Power Rating (HP): 0.25
• Voltage: 230/460
• Harmonized Tariff Code: 8501.51.4040
• Efficiency: 68
• Frame Size: 63
• IP Code: 55
• Duty: Continuous
• Max Ambient: 40°C
