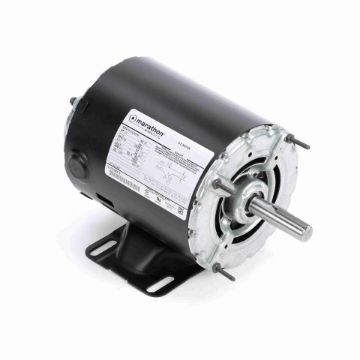

Marathon Electric Motors H905 1/2 HP AC Single Phase Motor

Product Description

The Marathon Electric Motors H905 is a 1/2 HP general-purpose motor designed for single-phase applications. It operates at 1800 RPM and runs on 115 volts. This motor features a 56Z frame and an open drip-proof enclosure, ensuring reliable performance in various environments.

• Heavy gauge steel frame and base for durability.
• Shaft extension measures two and one-quarter inches long by five-eighths inches diameter.
• Steel end shields contribute to the motor's robust construction.

Product Highlights

The H905 is ideal for continuous duty applications, providing efficient performance with a maximum ambient temperature of forty degrees Celsius.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• MPN: H905

Technical Specifications

• Power Rating (HP): 0.5
• Voltage: 115
• Current: 8.1
• Speed: 1725 RPM
• Frequency: 60 Hz
• Frame Size: 56
• Service Factor: 1.15
• Insulation Class: B
