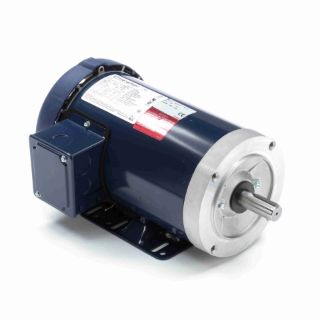

Marathon Electric Motors GT1206 MAR 2 HP General Purpose Motor 3 Phase 3600 RPM 230/460 V

Product Description

The Marathon Electric Motors GT1206 MAR is a two horsepower general purpose motor designed for three-phase applications. It operates at three thousand six hundred revolutions per minute and is compatible with both two hundred thirty volts and four hundred sixty volts. The motor features a 145TC frame and is constructed to be totally enclosed fan cooled.

• Meets or exceeds NEMA Premium efficiency standards
• Inverter duty with variable torque and constant torque capabilities
• Compliant with EISA2007 regulations

Product Highlights

This motor is suitable for continuous duty applications and is designed for reliability and efficiency in demanding environments.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: GT1206 MAR

Technical Specifications

• Power Rating: 2 HP
• Phases: 3
• Voltage: 230/460 V
• Speed: 3600 RPM
• Frame Size: 145TC
• Service Factor: 1.15
• Insulation Class: F
• Max Ambient Temperature: 40°C
