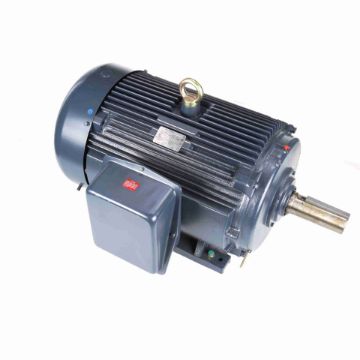

Marathon Electric Motors GT1048 General Purpose Motor 125 HP

Product Description

The Marathon Electric Motors GT1048 is a three-phase motor with a power rating of one hundred twenty-five horsepower. This motor operates at a speed of three thousand six hundred RPM and is designed for use at four hundred sixty volts. The cast iron frame and TEFC design enhance its durability and reliability in various applications.

• Complies with NEMA Premium efficiency standards.
• Inverter duty with variable torque capabilities.
• Reversible assembly options available.

Product Highlights

This motor is suitable for continuous duty applications and features Class F insulation to protect against overheating.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Manufacturer: Marathon Electric Motors

Technical Specifications

• Power Rating (HP): 125
• Voltage: 460
• Current: 136.0 A
• Phase: 3
• Speed: 3582 RPM
• Rotation: Reversible
• Efficiency: 95%
• Mounting Type: Rigid Base
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame Size: 444
• Frame Type: 444TS
• Insulation Class: F
• Max Ambient Temperature: 40°C
• Service Factor: 1.15
• Number of Speeds: 1
