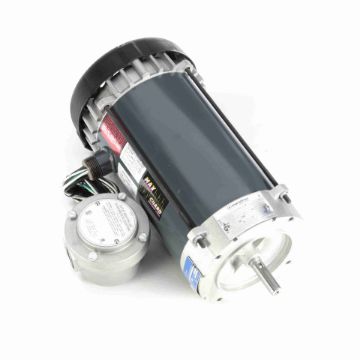

Marathon Electric Motors G841A MAR 1 HP Explosion Proof Motor 230/460 V

Product Description

The Marathon Electric Motors G841A MAR is a one horsepower explosion proof motor designed for three-phase applications. This motor operates at eighteen hundred RPM and supports dual voltage configurations at two hundred thirty or four hundred sixty volts. The frame size measures 56C, making it suitable for various installation requirements.

• Explosion proof construction for safety in hazardous locations
• Automatic reset thermal protector included
• Durable rolled steel frame and explosion proof fan cooled design

Product Highlights

Ideal for both industrial and commercial environments, this motor ensures optimal performance while adhering to safety standards.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: G841A MAR

Technical Specifications

• HP: 1
• Phases: 3
• Voltage: 230/460 V
• Speed: 1725 RPM
• Frame Size: 56C
• Max Ambient Temperature: 40°C
• Efficiency: 85.5%
• Enclosure Type: Explosion Proof Fan Cooled
• Starting Type: Across The Line
• Mounting Type: Round
• Motor Orientation: Horizontal
• Power Factor: 68
• Service Factor: 1
• Number of Poles: 4
