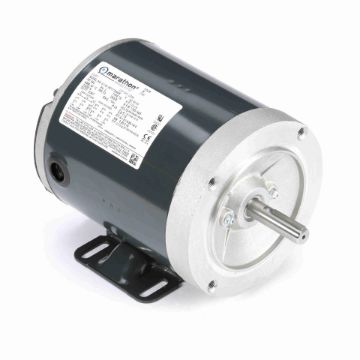

Marathon Electric Motors G580 General Purpose Motor 0.33 HP 3 Phase 208-230/460 V

Product Description

The Marathon Electric Motors G580 is a general-purpose motor with a power rating of 0.33 HP. This three-phase motor operates at 1800 RPM and is suitable for voltages of 208-230/460 V. It features a frame size of 56C and is totally enclosed and non-ventilated, making it ideal for various applications.

• Mechanically locked shaft end
• Class F insulation
• Rated for continuous duty

Product Highlights

The G580 motor is designed for efficient operation in both horizontal and vertical mounting configurations. It also supports brake kits and can be easily adapted with a bolt-on removable rigid base for versatile installation options.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: G580 MAR

Technical Specifications

• Power Rating (HP): 0.33
• Voltage: 208-230/460
• Current: 1.8-1.6/0.80
• Speed: 1725 RPM
• Frame Size: 56C
• Efficiency: 68%
• Power Factor: 61.9
• Insulation Class: F
• Mounting Type: Bolt-on Base
• Country of Origin: Mexico
