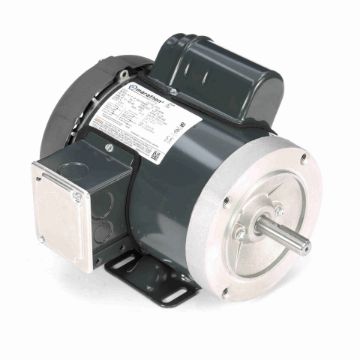

Marathon Electric Motors G570 General Purpose Motor 0.33 HP (Single Phase) Replacement MPN

Product Description

The Marathon Electric Motors G570 is a general purpose motor designed for various applications. This motor delivers 0.33 horsepower with a single phase configuration, operating at 1800 RPM. It functions on a voltage range of one hundred fifteen to two hundred eight/two hundred thirty volts. It features a 56C frame and a totally enclosed fan cooling system.

• Designed for both horizontal and vertical mounting.
• Heavy gauge steel construction ensures durability.
• Capacitor start design for enhanced starting torque.

Product Highlights

This motor is suitable for industrial uses, including fans, pumps, and other general equipment that require reliable, continuous operation.

Product Information

Standard Information

• Brand: Marathon Electric Motors
• Part Number: G570 MAR

Technical Specifications

• Power Rating: 0.33 HP
• Phases: 1
• Speed: 1800 RPM
• Voltage: 115/208-230 V
• Current: 6.6/3.1-3.3 A
• Frame Size: 56C
• Frame Type: Rigid Base
• Efficiency: 55 %
• Max Ambient Temperature: 40°C
• Motor Orientation: Horizontal
