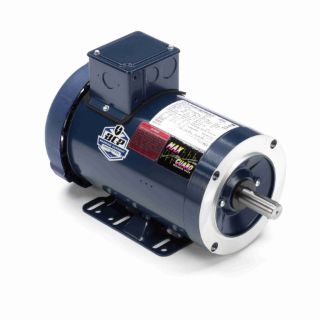

Marathon Electric Motors E2001A MAR 1 HP General Purpose Motor, 3 Phase

Product Description

The Marathon Electric Motors E2001A MAR is a 1 horsepower general-purpose motor designed for efficiency and durability. This model operates on three-phase power and reaches a speed of one thousand eight hundred RPM. It is built to run on voltages of two hundred thirty or four hundred sixty volts. The construction features a 143TC frame and is totally enclosed fan cooled (TEFC), allowing it to function in various environments.

• Complies with NEMA Premium efficiency standards.
• Capable of continuous duty operation with a service factor of 1.15.
• Designed to operate in ambient temperatures up to forty degrees Celsius.

Product Highlights

This motor is highly effective for a variety of applications in HVAC, industrial machinery, and commercial equipment.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Country of Origin: United States of America

Technical Specifications

• Power Rating (HP): 1
• Voltage: 230/460 V
• Phases: 3
• Efficiency: 85.5%
• Frame Size: 143TC
• Service Factor: 1.15
• Insulation Class: F
• Speed: 1765 RPM
