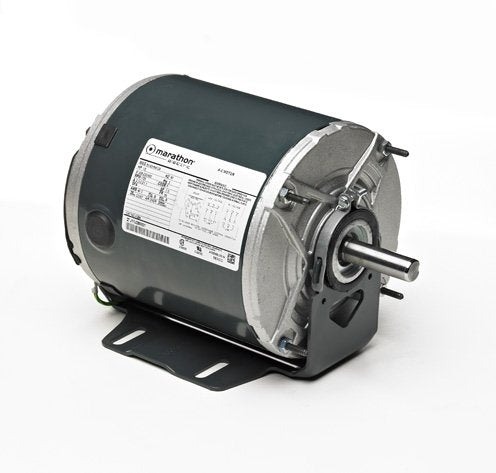

Marathon Electric K285 Blower/Fan Motor 0.5 hp 1200 RPM 208-230 460 V

Product Description

The Marathon Electric K285 Blower/Fan Motor is a versatile motor designed for both direct and belt drive air handlers and commercial exhaust fans. With a power rating of 0.5 hp, this motor operates at 1200 RPM and supports a voltage range of 208-230/460 V. This motor is built with a 56 frame size and features a TENV (Totally Enclosed Non-Ventilated) enclosure for enhanced durability and protection.

• Operates at 1200 RPM
• 0.5 horsepower
• Voltage range of 208-230/460 V

Product Highlights

This motor is ideal for HVAC and commercial air handling applications. It comes equipped with a 56 frame size and is built from high-quality steel. Designed for continuous duty, this motor ensures reliable performance and longevity.

Product Information

Standard Information

• Brand: Marathon Electric
• MPN: K285

Technical Specifications

• Speed: 1200 RPM
• Horsepower: 0.5 hp
• Voltage: 208-230/460 V
• Enclosure: TENV
• Frame Size: 56
• Frequency: 60 Hz
• Current: 2.60-2.60 / 1.30 A
• Full Load Efficiency: 69.90%
• Shaft Diameter: 0.63 in
• Overall Length: 10.48 in
• Insulation Class: B
• Service Factor: 1.00
• Standards Met: UL, CSA
• Weight: 24 lbs
• Material: Steel
