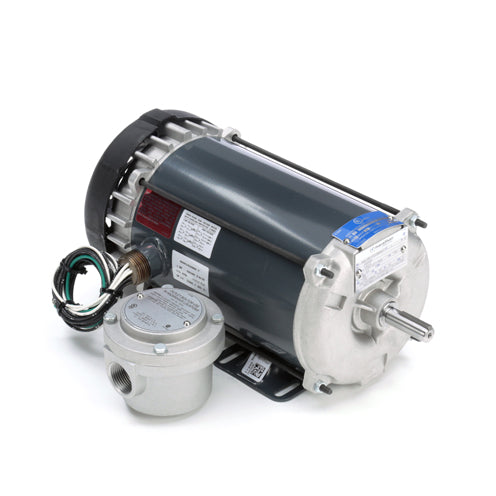

Marathon Electric G663A Explosion Proof / Hazardous Location Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 56 Frame

Product Description

Marathon Electric G663A is an explosion proof motor designed for hazardous locations. With a power output of one horsepower and a speed of 1800 revolutions per minute, this motor is built to operate in demanding environments. It runs on a three-phase electrical system ranging from two hundred eight to two hundred thirty or four hundred sixty volts.

• Features an EPFC enclosure for enhanced safety.
• Designed for continuous duty applications.
• Includes an automatic overload protection feature.

Product Highlights

The G663A motor meets temperature code T3B and comes with a suitable conduit box for installation.

Product Information

Standard Information

• Brand: Marathon Electric
• Model: G663A

Technical Specifications

• Power: 1 hp
• Rated Speed: 1800 rpm
• Phase: 3
• Voltage: 208-230/460 V
• Frame Size: 56
• Enclosure Type: EPFC
• IP Rating: 54
• Weight: 67 lbs
• Mounting Type: Rigid Base
• Full Load Current: 3.20 / 1.60 A
• Synchronous RPM: 1800 rpm
• Frequency Rating: 60 Hz
• Service Factor: 1.00
• Insulation Class: B
