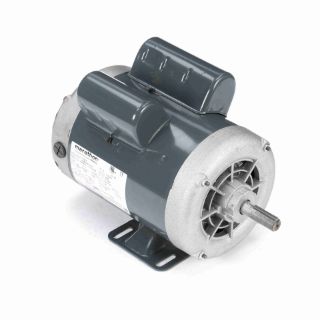

Marathon Electric C187A General Purpose Motor 2 HP 3600 RPM 115/230 V 56 Frame

Product Description

The Marathon Electric C187A is a general purpose motor designed for various applications. It operates at two horsepower with a speed of three thousand six hundred revolutions per minute. This single-phase motor supports both one hundred fifteen volts and two hundred thirty volts, making it versatile for different setups. The motor features a 56 frame size and has a drip-proof enclosure for added durability.

• Heavy gauge steel frame and base design
• Economical split phase or capacitor start configurations
• Continuous duty operation

Product Highlights

The C187A motor is suitable for continuous use in various applications. Its compact design and robust materials ensure efficient performance.

Product Information

Standard Information

• Manufacturer: Marathon Electric Motors
• Part Number: C187A MAR

Technical Specifications

• Power Rating (HP): 2
• Voltage: 115/230
• Current: 14.2/7.1
• Frame Size: 56
• Efficiency: 78.5%
• Shaft Diameter: 0.625 inches
• Speed: 3600 RPM
• Service Factor: 1.15
• Mounting Type: Rigid base
• Enclosure Type: Drip Proof
• Rotation: Selective Counterclockwise
