Marathon 6G38-TSKK-F Tin Plated Thermoplastic Housing Sectional Terminal Block 22-10-AWG

Product Description

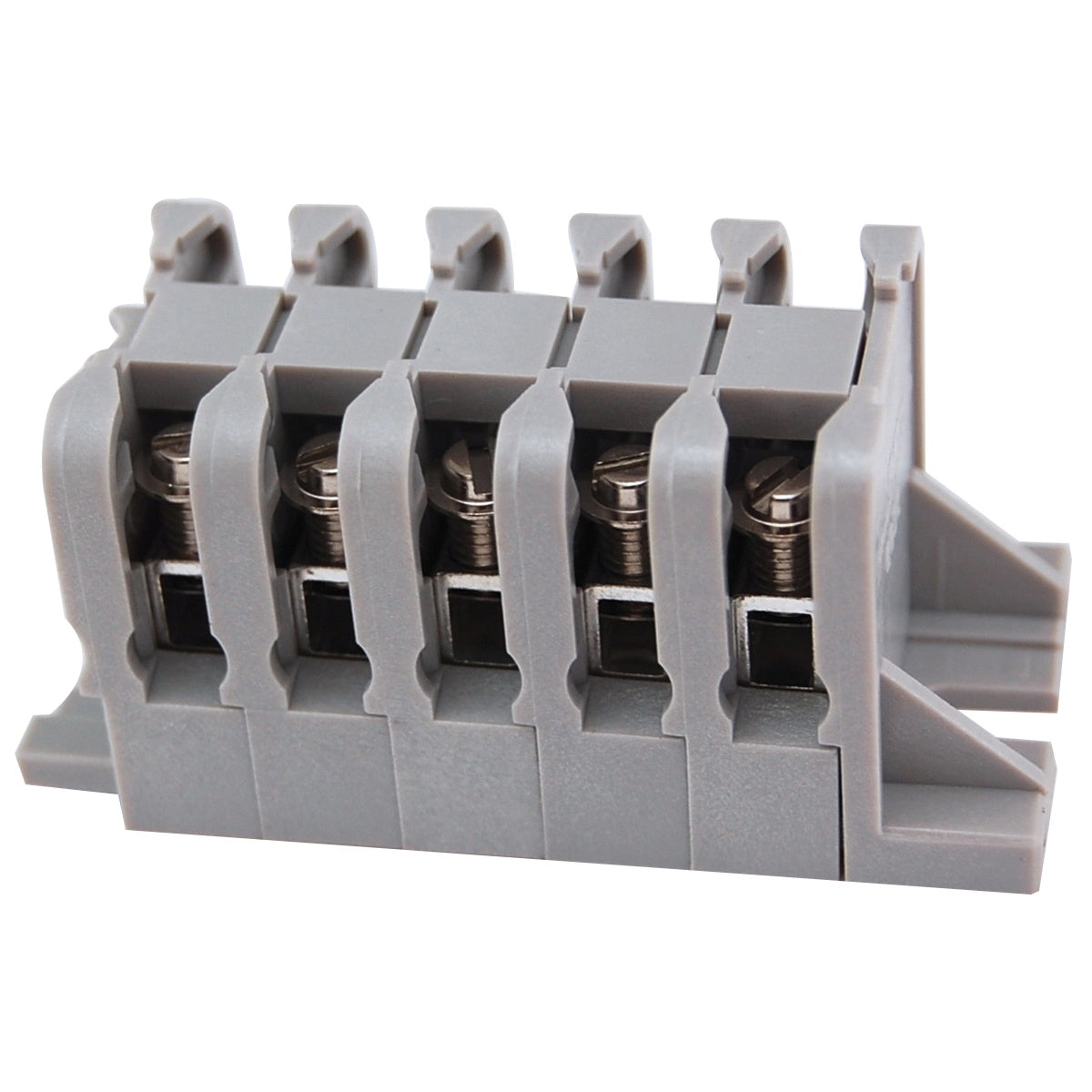

The Marathon 6G38-TSKK-F sectional terminal block has a voltage rating of 600 volts AC/DC and a current rating of 40 amps. It features thermoplastic housing along with a tin-plated copper tubular screw connector. This terminal block supports conductor sizes from 22 to 10 AWG. It includes a stainless steel wire protector and nickel-plated steel screws to enhance durability and performance.

• Voltage rating: 600 volts AC/DC
• Current rating: 40 amps
• Supports conductors from 22 to 10 AWG

Product Highlights

This terminal block is suitable for a variety of applications requiring reliable power distribution. It meets several standards such as UL 1059, CSA C22.2 No. 158, and IEC 60947-7-1, ensuring safety and quality compliance.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: 6G38-TSKK-F

Technical Specifications

• Voltage Rating: 600 Volt AC/DC
• Amperage Rating: 40 Amp
• Temperature Rating: -40 to 125 degrees C
• Size: 1.25 Inch Width x 1.26 Inch Height
• Material: Thermoplastic Housing, Tin Plated Copper Tubular Screw Connector
• Insulation: Glass Filled Polycarbonate
• Connection Type: #10-32 Screw Terminal
• Conductor Range: 22-10 AWG
• Interrupt Rating: 10 Kilo-Amp
• Degree of Protection: IP20
• Environmental Conditions: V0 Flammability Rated Per UL94
