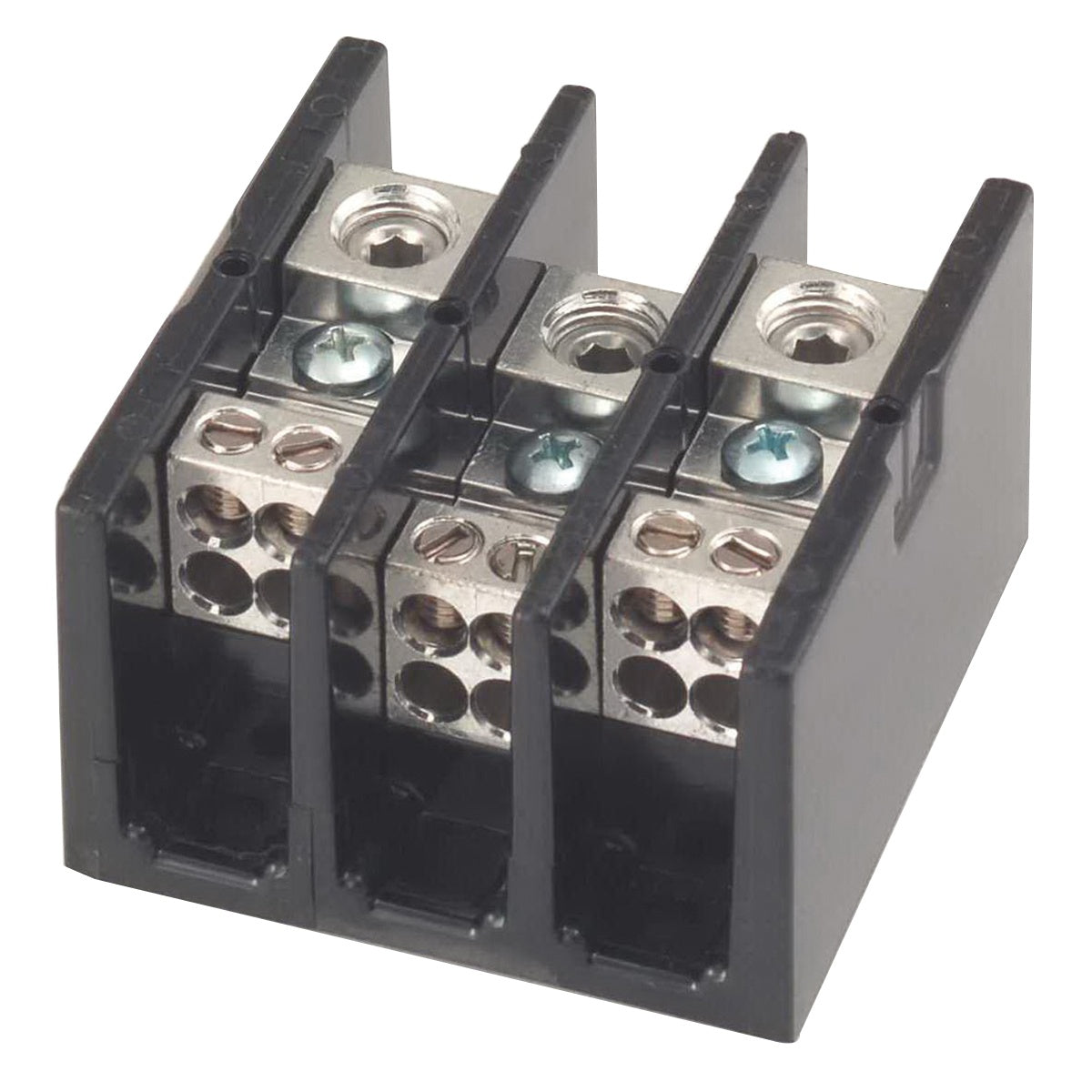

Marathon 1423570 Tin Plated Phenolic Housing Standard Power Distribution Block (1) 2/0-14-AWG Line (4) 14-4-AWG Load Copper

Product Description

Marathon offers the 1423570 power distribution block, which is designed for electrical applications with a voltage rating of six hundred volts AC/DC and supports a current rating of one hundred seventy-five amps. This three-pole device features a robust phenolic housing, making it suitable for demanding environments.

• Voltage rating of six hundred volts AC/DC.
• Supports conductor sizes from two aught to fourteen AWG on the line side, and fourteen to four AWG on the load side.
• Meets industry standards including UL 1059 and RoHS compliance.

Product Highlights

This power distribution block is ideal for efficient distribution of power in various electrical setups. It ensures reliable connectivity and safety in electrical applications.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: 1423570

Technical Specifications

• Voltage Rating: 600 volts AC/DC
• Current Rating: 175 amps
• Number of Poles: 3
• Conductor Range: (1) 2/0-14 AWG Line, (4) 14-4 AWG Load Copper
• Temperature Rating: -40 to 150 degrees C
• Size: 2.75 inches Length x 2.87 inches Width x 1.78 inches Height
• Torque Rating: 4 - 13.6 N-m Line, 4 N-m Load
• Mounting Type: Panel
