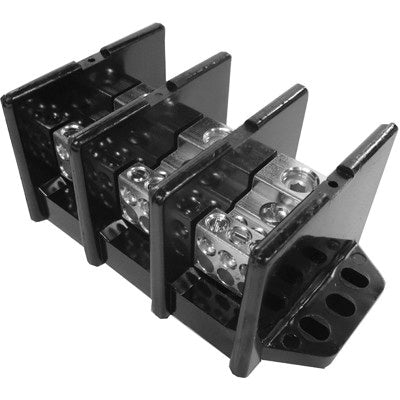

Marathon 1403401 Phenolic Insulator Base Aluminum Connector 140 Series Open Style Standard Power Distribution Block (1) 2/0-14-AWG Line (6) 4-14-AWG Load

Product Description

The Marathon 1403401 is a phenolic insulator base aluminum connector designed for use in power distribution applications. It has a voltage rating of 600 volts AC/DC and a current rating of 175 amps. This three-pole power distribution block allows for a single line conductor size from 2/0 to 14 AWG and accommodates six load conductors ranging from 4 to 14 AWG.

• Voltage rating of 600 volts AC/DC
• Current rating of 175 amps
• Accommodates conductors from 2/0 to 14 AWG

Product Highlights

Ideal for use in air conditioning systems, control panels, elevator systems, heating, material handling equipment, motor control, and switchgear applications. The light yet durable design features a tin-plated finish and meets various industry standards.

Product Information

Standard Information

• Brand: Marathon
• Manufacturer Part Number: 1403401

Technical Specifications

• UPC: 78433703401
• Voltage Rating: 600 Volt AC/DC
• Amperage Rating: 175 Amp
• Conductor Range: (1) 2/0-14 AWG Line, (6) 4-14 AWG Load
• Torque Rating: 120 lb-Inch
• Temperature Rating: -40 to 150 deg C
• Size: 5.38 Inch Length x 2.9 Inch Width x 2.06 Inch Height
• Number of Poles: 3
• Mounting: Panel
• Finish: Tin Plated
• Connection Type: Box Lug
• Standards: UL XCFR2.E62806 Listed, CSA LR19766 Certified, CE Marked, RoHS Compliant
