Marantz 9u6391023000s Hdmi Pcb Assembly SR5010

Product Description

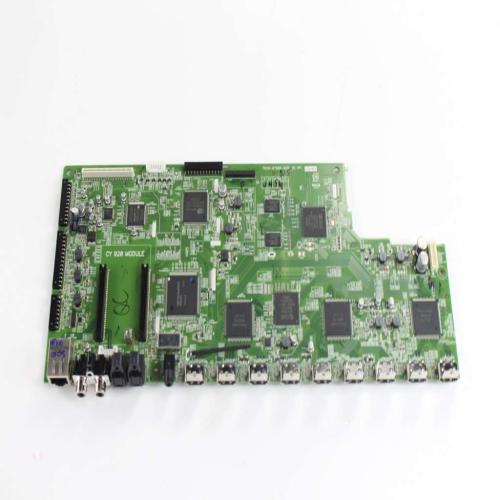

The MARANTZ 9u6391023000s is an OEM HDMI PCB assembly designed for use in the Marantz SR5010 AV receiver. This printed circuit board assembly handles HDMI signal routing and switching within the receiver, serving as the hardware interface for HDMI input and output connectivity. It is a direct replacement part intended for electronics repair technicians and authorized service centers performing component-level repairs on the SR5010 unit. Installation requires circuit board handling experience and proper ESD precautions throughout the service procedure.

This HDMI PCB assembly is a genuine Marantz replacement part for the SR5010 AV receiver. It is suited for residential home theater installations where the original HDMI board has failed, resulting in loss of HDMI signal pass-through, switching errors, or complete port failure. Repair shops and bench technicians servicing Marantz consumer electronics equipment will find this part appropriate for restoring full HDMI functionality to affected units.

Key Features

• OEM replacement HDMI PCB assembly for Marantz SR5010 AV receiver
• Handles HDMI signal routing and port connectivity within the receiver
• Lightweight construction — under 1 pound shipping weight
• Designed for component-level board replacement during bench service

Compatibility

Designed as an OEM-style replacement HDMI PCB assembly for the Marantz SR5010 AV receiver.

Installation Notes

Installation should be performed by a qualified electronics repair technician. Disconnect and fully power down the receiver and unplug it from AC power before beginning any disassembly. Use proper electrostatic discharge (ESD) protection including a grounded wrist strap when handling the PCB assembly. Refer to the Marantz SR5010 service documentation for disassembly sequence and board seating procedure.

Technical Specifications

• Weight: Under 1 pound

Standard Information

• Brand: MARANTZ
• Manufacturer Part Number: 9u6391023000s
