Marantz 172010008005s Vfd Display SR7005

Product Description

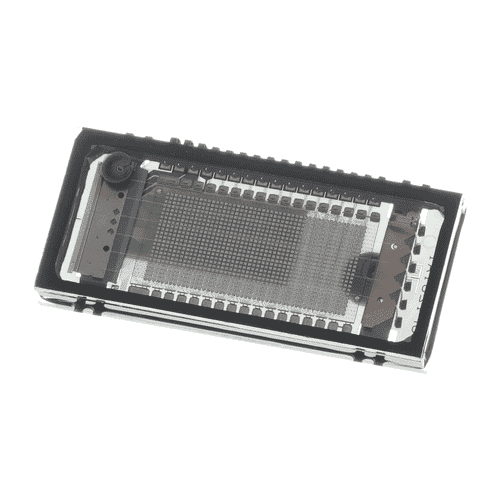

The MARANTZ 172010008005s is a VFD (vacuum fluorescent display) board designed as a direct replacement part for the Marantz SR7005 AV receiver. This component drives the front-panel display, rendering source input labels, volume levels, and system status readouts visible to the operator. It is an OEM-style replacement intended for repair technicians and electronics service professionals performing component-level service on Marantz home theater receivers. Proper function of this board is essential to receiver operability, as a failed display can prevent normal user interaction with the unit.

This part is applicable to consumer electronics repair scenarios where the original VFD display has failed due to age, power surge, or physical damage. It is suited for bench-level repair performed by electronics technicians or experienced service professionals. The GP1261AI designation corresponds to the display module assembly used in the SR7005 receiver platform.

Key Features

• Vacuum fluorescent display board for front-panel readout function
• OEM-style replacement for failed or damaged SR7005 display assemblies
• GP1261AI display module designation for precise part identification
• Designed for component-level repair of Marantz AV receivers

Compatibility

Compatible with the Marantz SR7005 AV receiver as indicated by the supplier part data. No additional compatible models were specified in the source data.

Installation Notes

Installation should be performed by a qualified electronics technician with experience in component-level AV equipment repair. Disconnect and unplug the receiver from all power sources before beginning disassembly. Discharge any stored capacitor voltage before handling internal boards. Handle the VFD module carefully to avoid damage to the display face or ribbon cable connectors during removal and installation.

Technical Specifications

• Part Type: VFD Display Board
• Display Module: GP1261AI
• Compatible Model: SR7005

Standard Information

• Brand: MARANTZ
• Manufacturer Part Number: 172010008005s
