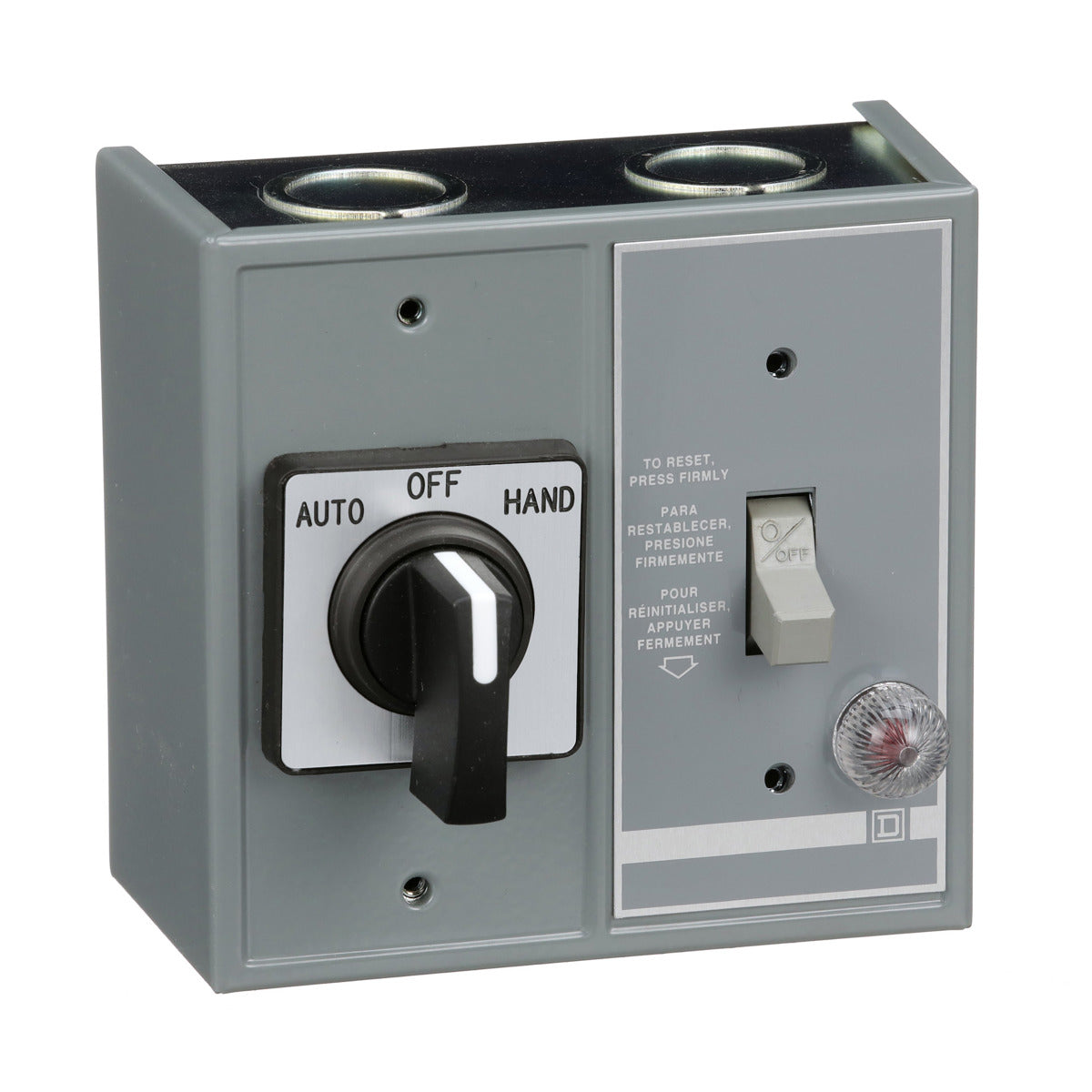

Square D 2510FG71P Manual Starter 16 Amp 1 Hp 1-Pole NEMA 1

Product Description

The Square D 2510FG71P Manual Starter is a reliable solution for manual on-off control and overload protection for small motors. Designed for ease of use and durability, it is ideal for various industrial and commercial applications.

• Manual on-off control
• Overload protection
• Suitable for small motors

Product Highlights

The Square D 2510FG71P Manual Starter ensures safe and efficient motor operation, making it suitable for a variety of installations, including fans, conveyors, pumps, and small machine tools. The device features a NEMA 1 surface mount enclosure and a single-pole double-throw selector switch for straightforward manual control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: 2510FG71P
• Country of Origin: Mexico
• Warranty Length: 18 months

Technical Specifications

• Current: 16 Amp
• Voltage: 277 Volt
• Amperage: 16A
• Depth: 2.88 inches
• Width: 2.44 inches
• Height: 4.25 inches
• Enclosure: NEMA 1
• Thermal Overload: Melting alloy
• Line Rated Current: 16 A
• Number of Poles: 1 Pole
• Number of Phases: 1 Phase
• Certifications: UL listed, CSA certified
• Control Type: Toggle switch
• Local Signalling: Red indicator
• Maximum Horse Power Rating: 1 hp at 115, 230, and 277 VAC
