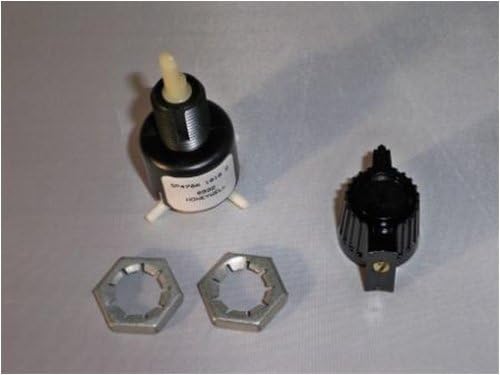

Honeywell SP470A1018 Pneumatic Selector Switch

Product Description

The Honeywell SP470A1018 Pneumatic Selector Switch is a versatile component used in various industrial applications. It serves to manually divert, block, or bleed air in pneumatic air lines to adjust control sequences based on changing conditions.

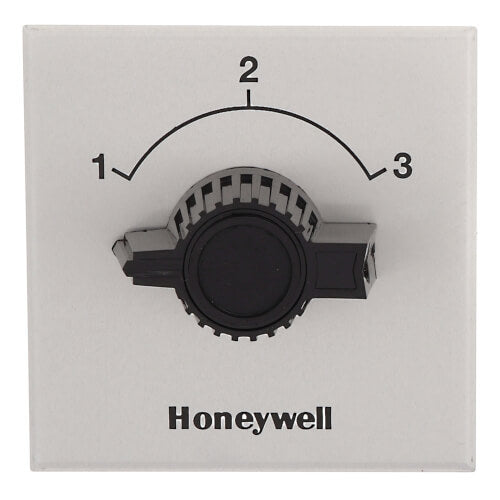

• Three-position selector switch
• Manual diverting operation
• Panel mountable

Product Highlights

The Honeywell SP470A1018 is perfect for day-night, summer-winter, on-off-auto, or start-stop functions, and is compatible with other major brands like Johnson, Powers, and Robertshaw.

Product Information

Standard Information

• Brand: Honeywell
• MPN: SP470A1018

Technical Specifications

• Switch Type: Three Position Pneumatic Diverting Switch
• Switch Operation: Manually diverts, blocks, or bleeds pneumatic air lines
• Airflow Usage: 0.175 scfm (82.6 mL/s) minimum at 1 psi pressure drop
• Air Connections: Barb fitting for 5/32 in. (4 mm) O.D. plastic tubing
• Maximum Safe Operating Pressure: 30 psi
• Mounting: Panel mountable up to 7/16 in. thick
• Operating Humidity Range: 5 to 95% RH
• Temperature Range: 20 F to 140 F
• Dimensions: 1 5/8 in. high x 1 9/16 in. wide x 3 in. deep
