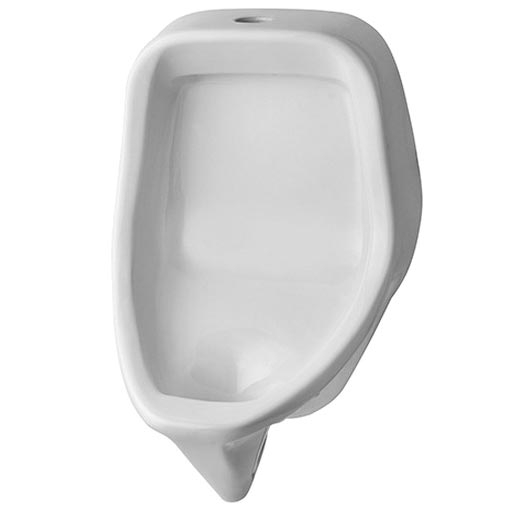

Mansfield 475HE WH 475 HE Suburban High Efficiency Siphon Jet Urinal 0.5 gpf Top Spud Wall Mount

Product Description

The Mansfield 475HE WH is a high-efficiency siphon jet urinal designed for wall-mounted installation. This product has a flush rate of 0.5 gallons per flush (gpf), making it a suitable choice for water conservation. With its top spud inlet and integral trap, this urinal combines functionality with streamlined design.

• 0.5 gallons per flush
• Integral trap for efficient waste removal
• Wall-mounted for space-saving installation

Product Highlights

This product provides an effective solution for commercial spaces looking to optimize water usage while maintaining cleanliness and hygiene.

Product Information

Standard Information

• Brand: Mansfield Plumbing Products
• Part Number: C0930

Technical Specifications

• Collection: Suburban
• Dimensions: 21-3/8 inches high x 14-5/8 inches wide x 14-3/8 inches deep
• Finish/Color: White
• Flush Rate: 0.5 gpf
• Includes: 2 inch IPS outlet connector and gaskets
• Inlet Spud Size: 3/4 inch
• Material: Vitreous China
• Manufacturing Standards/Approvals: ADA Compliant, ASME A112.19.2-2008, CSA B45.1-08, cUPC Listed, HEU Certified
• Mounting Type: Wall
• Outlet Tap Size: 2 inches
• Package Weight: 35.0 lb
• Series: 475 HE
• Spud Location: Top
• Type: High Efficiency
• Warranty: Limited Lifetime
